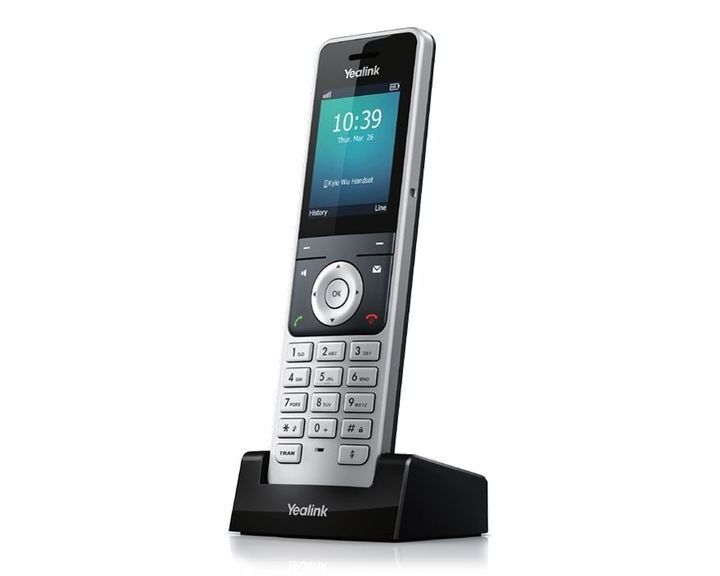

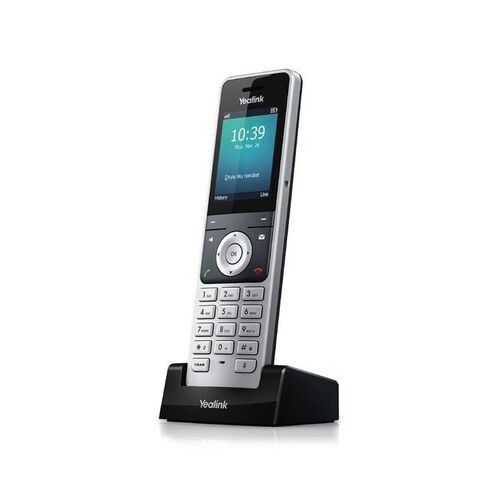

The W56H is a cordless IP-DECT Handset that can be added to Yealink's W56P scalable IP-DECT Phones. The W56P is supplied with one Handset; up to 4x further handsets can be added.
The W56P is a complete business-grade SIP Cordless Phone. This state of the art IP-DECT solution supports up to 5x W56H cordless IP-DECT Handsets per Base Station, and is designed for enterprises who are looking for a scalable SIP-based mobile communications system that provides immediate cost savings. The W56P supports the Opus high definition voice codec and the CAT-IQ2.0 standard (fully backwards compatible to the DECT GAP standard), ensuring crystal clear calls and a low data bit-rate. Combining the benefits of DECT wireless communication with the rich business features of Voice over IP telephony, users can benefit from freedom of movement, lifelike HD audio voice communications, multi-tasking convenience and professional features like intercom, transfer, call forward, 3-way conferencing and PoE support.
Phone Features | |
⢠| Up to 4 simultaneous calls |
⢠| Up to 5 handsets, up to 5 VoIP accounts |
⢠| Handset select for receiving call |
⢠| Handset and Number select for making call |
⢠| Paging, intercom, auto answer |
⢠| Call hold, call transfer, 3-way conferencing |
⢠| Switching between calls |
⢠| Call waiting, mute, DND |
⢠| Caller ID display, redial |
⢠| Anonymous call, anonymous call rejection |
⢠| Call forward (always/busy/no answer) |
⢠| Speed dial, voicemail, silence |
⢠| Message Waiting Indication (MWI) |
⢠| Local phonebook for up to 500 entries (store in the base) |
⢠| Remote phonebook/LDAP |
⢠| Phonebook search/import/export |
⢠| Call history utgoing/missed/accepted) |
⢠| Direct IP call without SIP proxy |
⢠| Reset to factory, reboot |
⢠| Keypad lock, emergency call |
⢠| Dial Plan, music on hold |
⢠| Broadsoft directory, BroadSoft Call Log |
⢠| Broadworks feature key synchronization |
⢠| Shared Call Appearance (SCA) |
Management | |
⢠| Auto-provision via FTP/TFTP/HTTP/HTTPS |
⢠| Auto-provision with PnP |
⢠| Handset upgrade: OTA (Over-The-Air) |
⢠| Configuration:browser/phone/auto-provision |
⢠| Trace package and system log export |
Voice and Codecs Features | |
⢠| Full-duplex speakerphone |
⢠| Receiver volume control: 5 steps |
⢠| Ringer volume control: 5 steps+off |
⢠| Multiple advisory tones |
⢠| Acoustic warning for low battery status |
⢠| DTMF |
⢠| Wideband codec: G.722 |
⢠| Narrowband codec: G.711µ/A, G.723, G.726, G.729, iLBC, VAD, CNG, AEC, PLC, AJB |
⢠| Support VQ-RTCPXR (RFC6035) |
Physical Features | |
⢠| Indoor Range: 20m~50m (The ideal distance is 50m) |
⢠| Outdoor Range: 300m (In ideal conditions) |
⢠| Standby Time: 400h (In ideal conditions) |
⢠| Talk Time: 30h |
⢠| 2.4ââ 240x320 pixels color display |
⢠| Desktop or wall mountable |
⢠| LCD backlit, key backlit |
⢠| Energy-saving ECO mode/ECO Mode+ |
⢠| 12 key numerical keypad, 5 navigation keys 2 softkeys, 6 function keys, 6 shortcut keys |
⢠| 3 LEDs on Base: 1 x power, 1 x Network, 1 x Call |
⢠| Base station: DC 5V/600mA Output |
⢠| Charger: DC 5V/600mA Output |
⢠| Phone size: 176mm x 50mm x 24mm |
⢠| Base station size: 153mm x 53mm x 23mm |
⢠| Operating humidity: 10 ~ 95% |
⢠| Operating temp: -10 ~ +50°C |
SKU | W56H |
Barcode # | 6938818301337 |
Brand | YEALINK |
Shipping Weight | 0.5000kg |
