HIGHLIGHTS

Technical Specifications

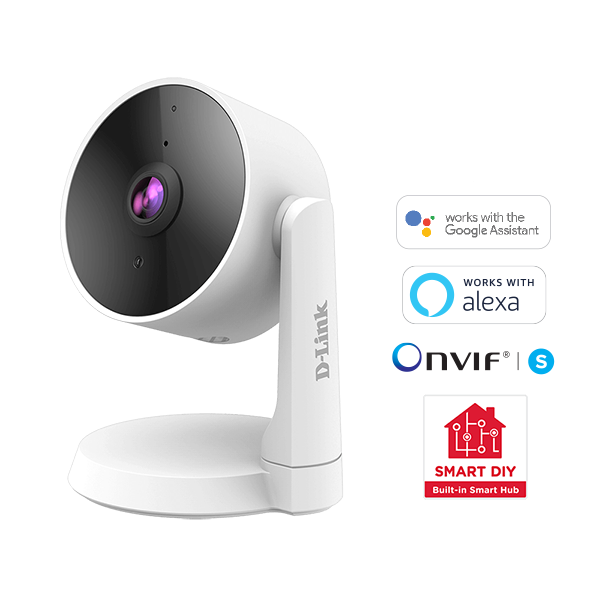

DCS-8330LH Smart Full HD Wi-Fi Camera

Camera Hardware Profile

• 1/2.7” Megapixel progressive CMOS sensor
• Minimum illumination:
  • B/W mode (IR LEDs on): 0 lux
• Lens focal length: 3.0 mm
• Aperture: F2.0
• 5 metre IR illumination distance
• Angle of view:
  • Horizontal: 126°
  • Vertical: 63°
  • Diagonal: 151°
• Built-in Infrared-Cut Removable (ICR) Filter
• Built-in microphone and speaker

Image Features

• Configurable image size
• Priority Zone Detection
• Person Detection
• Multi-zone Motion Detection (up to four zones)
• Boundary-Corssing Detection

Video Compression

• H.264 streaming
• JPEG for still images

Video Resolution

• Main Profile 1080P (1920 x 1080) at up to 30 fps
• Second Profile 720P (1280 x 720) at up to 15 fps

Audio Support

• MPEG-2 AAC LC

Connectivity

• 802.11n/g/b wireless with WPA/WPA2/WPA3 encryption
• Wi-Fi operates on the 2.4 GHz band
• Zigbee 3.0
• microSD card slot
• Bluetooth Low Energy 4.0

Network Protocols

• IPv4, IPv6
• DHCP client
• RTP/RTSP
• RTSP
• RTCP
• HTTPS
• Bonjour (mDNS and DNS-SD)
• ONVIF Profile S

Features

Event Management

• Motion object detection
• Person detection
• Sound detection
• Event recording to an SD card2
• Event notification and snapshot/video clip download to mobile device
• mydlink Cloud Recording2
• Push Notification with quick action buttons of Designated Contact Numbers and Live View

Mobile Support

• mydlink app for iOS and Android devices1,3

Physical

Weight

• 140 grams  ± 5%

Power Adapter

• Input: 100 to 240 V AC, 50/60 Hz
• Output: 5 V DC 2.0 A (Micro-USB)

Power Consumption

• Maximum:  7 watts ± 5%

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -20 to 70 °C (-4 to 158 °F)

Humidity

• Operating: 20% to 80% non-condensing

Certifications

• CE
• CE LVD
• FCC
• ICES
• RCM

1. Smartphone or tablet must have access to the Internet via Wi-Fi or mobile Internet.
2. Use of audio or video equipment for recording the image or audio of a person without their knowledge and consent is prohibited in certain countries or jurisdictions. The end-user assumes all liability for compliance with applicable local laws.
3. Please refer to the mobile app’s store page to check whether your device is compatible.

DCH-B112 Smart Door/ Window Sensor

• Open/close detection for your doors and windows
• Sensor Bypass Button allows you to open doors and windows without triggering an alert
• Tamper detection for greater peace of mind
• Battery-powered for unrestricted placement – no power outlet needed
• Requires a mydlink Smart Home Hub or Amazon Echo Plus1
• Triggers automations with other mydlink cameras and smart plugs
• Compatible with the Google Assistant, Alexa, and IFTTT3
• Connects using Zigbee™ technology1

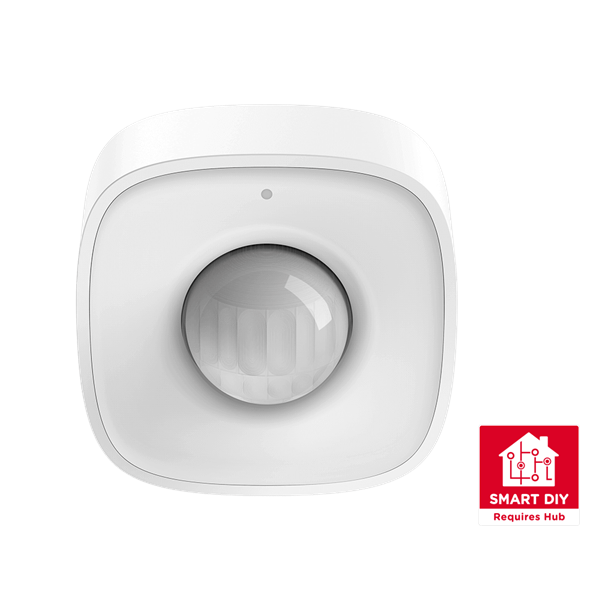

DCH-B122 Smart Motion Sensor

• Get motion detection alerts on your phone
• Tamper detection for greater peace of mind
• Battery-powered for unrestricted placement – no power outlet needed
• Triggers automations with other mydlink Cameras and Smart Plugs
• Easily mounts on any wall with adhesive strip
• Requires a mydlink Smart Home Hub or Amazon Echo Plus1
• Compatible with Alexa, and IFTTT3
• Intuitive setup using the free mydlink app
• Connects using Zigbee™ technology1



Digital Zoom :	Pinch to Zoom
Camera Type :	Cube
Two-way Audio :	Yes
Wireless :	Yes
Video Recording Option :	microSD Card|mydlink Cloud Subscription|ONVIF Profile S
Power :	Included Power Supply
Camera Advanced Feature :	Person Detection|Boundary Crossing Detection|Priority Zone Detection|Multi-zone Detection|Smart Home Hub built-in|WPA3 Encryption|IPv6 Ready
Built-in Speaker :	Yes
Motion Detection :	Yes
Sound Detection :	Yes
Wireless Connectivity :	802.11n
Indoor / Outdoor :	Indoor
Video Compression :	H.264
Maximum Video Resolution :	1920 x 1080 @30fps
Warranty :	1-Year Limited Warranty
Motorised Pan / Tilt :	No
ePTZ :	No
MicroSD Card Slot :	Yes
Night Vision Range :	B&W 5m
Smart Home Compatible :	Amazon Alexa|Google Assistant|IFTTT|mydlink
Ethernet Port :	No
Built-in Microphone :	Yes
