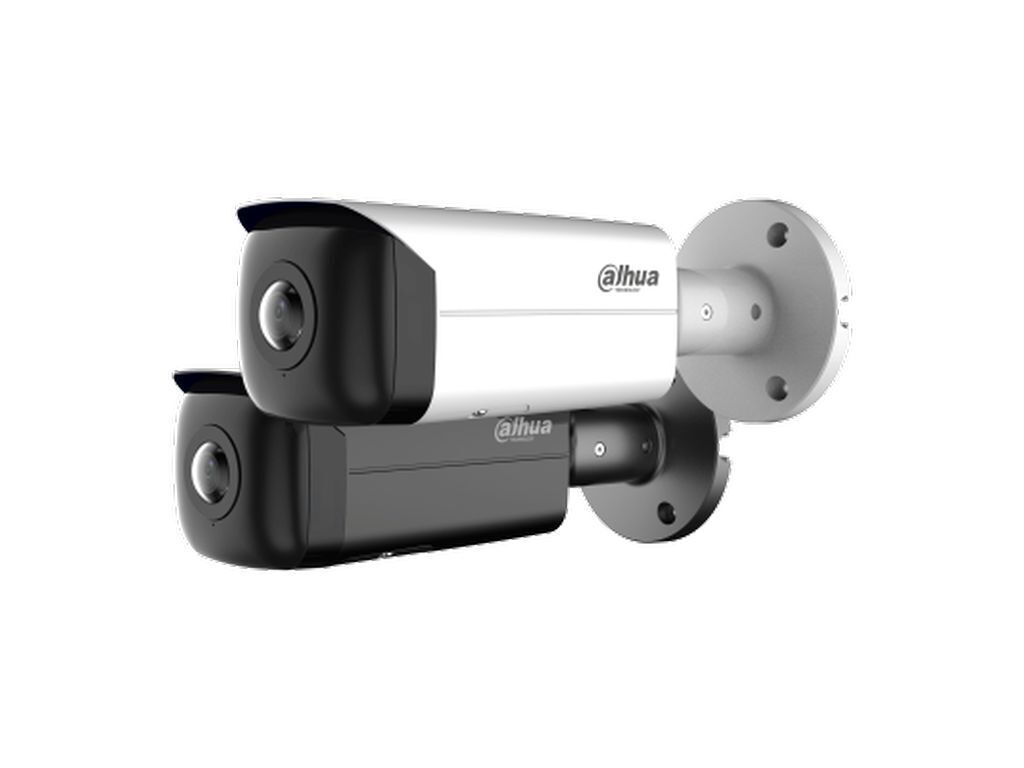

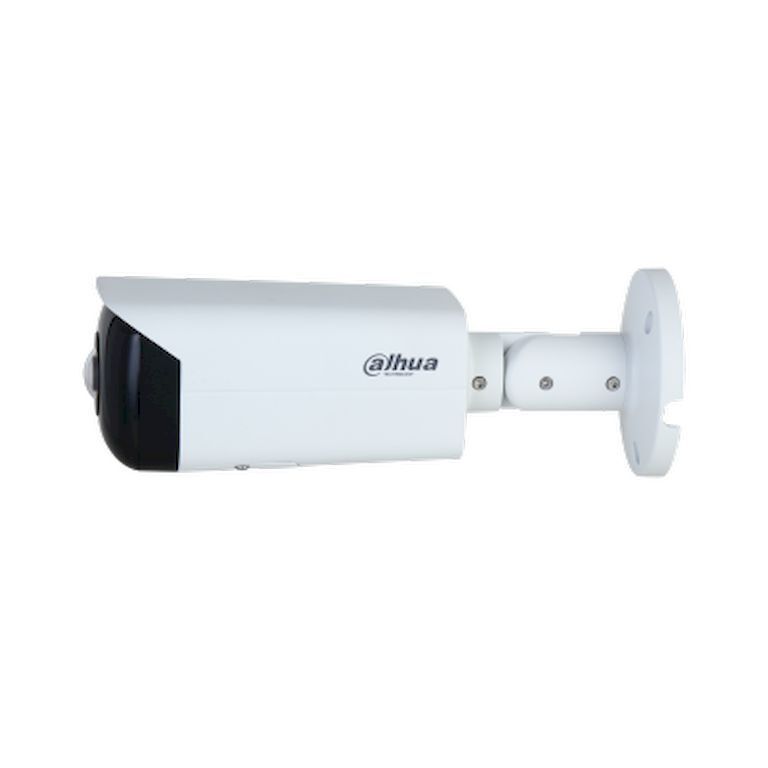

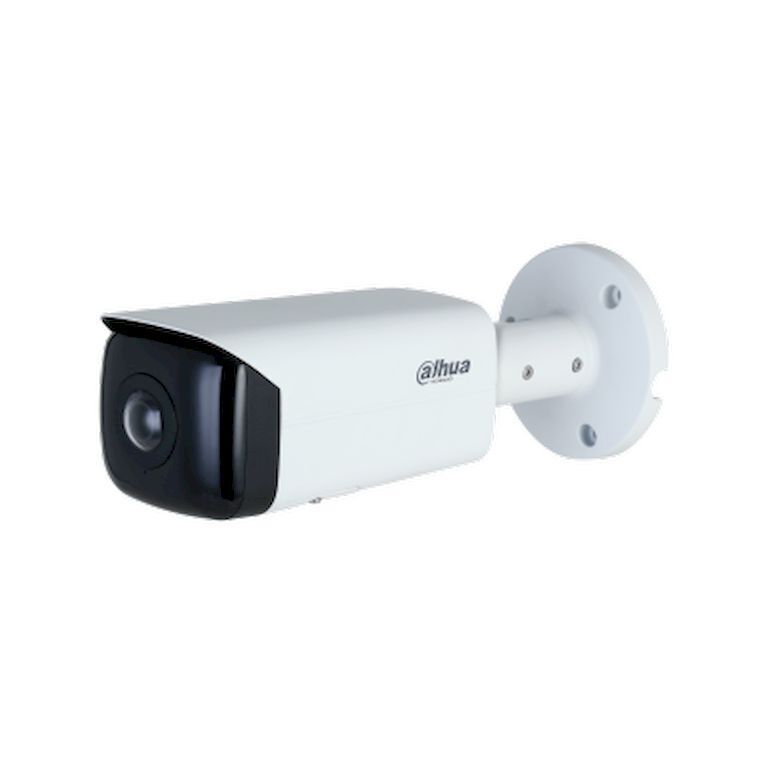

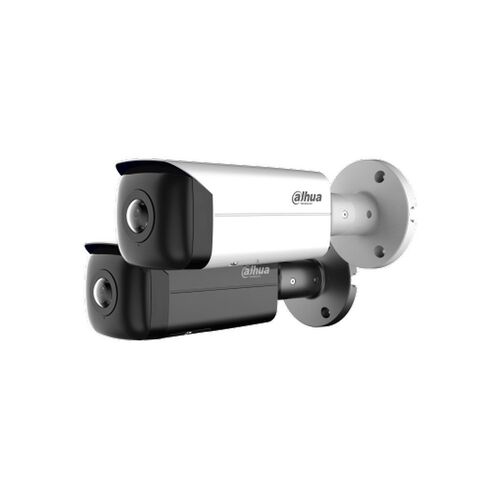

DAHUA DH-IPC-HFW3466T-AS-P WIZSENSE HFW3466T 4MP BULLET CAMERA, WIDE 180 ANGLE FIXED 2.1MM, IR 15M
Model # DH-IPC-HFW3466T-AS-P
DAHUASKU: DH-IPC-HFW3466T-AS-P
In Stock
DH-IPC-HFW3466T-AS-P
4MP Wide Angle Fixed Bullet WizSense Network Camera
> Outputs 4 MP (2688 Ã 1520) @25/30 fps , and supports max. 5 MP (2880 Ã 1620) @20 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 20 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply.
> IP67 protection.
> EPTZ: Enlarge and track the targets of intelligent alarms.
> SMD 3.0.
Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/2.7" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution | 2880 (H) Ã 1620 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 128 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 512 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Auto/Manual 1/3 sâ1/100,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | 0.01 [email protected] (Color,30 IRE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | >56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | 20 m (65.62 ft) (IR LED) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Auto | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number | 2 (IR LED) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range | Pan: 0°â360° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type | Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Mount | M12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 2.1 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture | F2.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | LDC is disabled: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance | 0.6 m (1.97 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2.1 mm | 52.0 m | 20.8 m | 10.4 m | 5.2 m | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD 3.0 | Less false alarm, longer detection distance | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression | H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codec | Smart H.265+; Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI Coding | AI H.265; AI H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate | Main stream: 2880 Ã 1620 @(1â20 fps )/2688 Ã 1520 @(1â25/30 fps ) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stream Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 5M (2880 Ã 1620); 4M (2688 Ã 1520/2560 Ã 1440); 3M (2048 Ã 1536); 2304 Ã 296 ; 1080p(1920 Ã 1080); | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate | H.264: 3 kbpsâ8192 kbps; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night | Auto (ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR | 120dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scene Self-adaptation (SSA) | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control | Auto; Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection | OFF/ON (4 areas, rectangular) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest (RoI) | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Illumination | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Defog | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688Ã1520 resolution and lower) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirror | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking | 4 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Built-in MIC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; SMD; security exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cyber Security | Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host | 20 (Total bandwidth: 64 M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser | IE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software | Smart PSS; DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Client | iOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE-LVD:EN62368-1; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input | 1 channel in: 5 mA 3â5V DC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output | 1 channel out: 1,000 mA 30V DC/500mA 50V DC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 12 VDC/PoE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | Basic: 3.1 W (12 V DC); 5.3 W (PoE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | â40 °C to +60 °C (â40 °F to +140 °F)/Less than 95% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature | â40 °C to +60 °C (â40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing | Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions | 249.3 mm à 90.7 mm à 90.4 mm (9.81" à 3.57" à 3.56") (L à W à H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | <
Manufacturer Warranty: 3 Years Manufacturer Warranty
