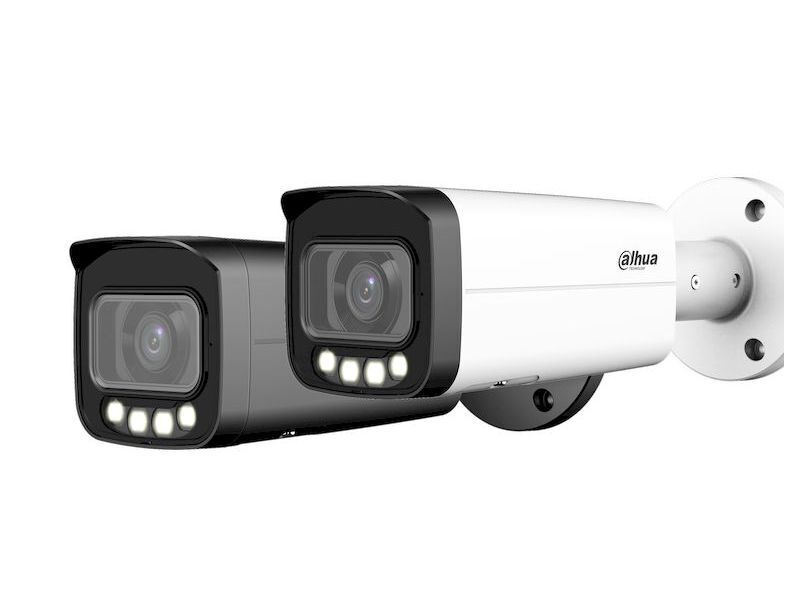

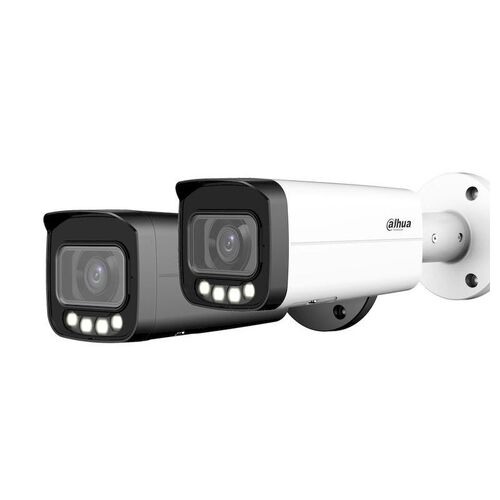

DAHUA DH-IPC-HFW5449T-ASE-LED WIZMIND HFW5449T 4MP BULLET CAMERA, FIXED 2.8MM, LED 60M
Model # DH-IPC-HFW5449T-ASE-LED
DAHUASKU: DH-IPC-HFW5449T-ASE-LED
IPC-HFW5449T-ASE-LED
4MP Full-color Fixed-focal Warm LED Bullet WizMind Network Camera
*The parameters and datasheets below can only be applied to 5449-ASE-S2 series.
> 4-MP 1/1.8" CMOS image sensor, low illuminance, high image definition.
> Outputs max. 4 MP (2688 Ã 1520) @30 fps.
> Built-in warm light and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata,IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card, built-in Mic.
> 12 VDC/PoE power supply; ePoE.
> IP67 protection.
> SMD 3.0.
Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/1.8" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution | 2688 (H) Ã 1520 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 256 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 1 GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Auto/Manual 1/3 sâ1/100,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | 0.0005 [email protected] | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | > 56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | Up to 40 m (131.23 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Auto; Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number | 4 (Warm light) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Angle Adjustment | Pan: 0°â360° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type | Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Mount | M16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 2.8 mm; 3.6 mm; 6 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture | 2.8 mm: F1.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | 2.8 mm: H: 112°; V: 60°; D: 135° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance | 2.8 mm: 1.6 m (5.25 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
2.8 mm | 58.2 m (190.94 ft) | 23.3 m (76.44 ft) | 11.6 m (38.06 ft) | 5.8 m (19.03 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
3.6 mm | 70.3 m (230.64 ft) | 28.1 m (92.19 ft) | 14.1 m (46.26 ft) | 7.0 m (22.97 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
6 mm | 116.1 m (380.91 ft) | 46.5 m (152.56 ft) | 23.2 m (76.12 ft) | 11.6 m (38.06 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Object Detection | Smart abandoned object; smart missing object | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD | SMD 3.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
People Counting | Tripwire people counting and people counting in area; generating and exporting report (day/month/year); 4 rules can be set for tripwire, people counting in area and queue management. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Heat Map | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Metadata | Motor vehicle, non-motor vehicle, face, and human body | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codec | Smart H.265+; Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI Coding | AI H.265; AI H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate | Main stream: 2688Ã 1520@(1 fpsâ25/30 fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stream Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 2688 Ã 1520; 2560 Ã 1440; 2048 Ã 1536; 2304 Ã 1296; 1080p (1920 Ã 1080); 1.3M (1280 Ã 960); 720p (1280 Ã 720); D1 (704 Ã 576/704 Ã 480); VGA(640 Ã 480); CIF (352 Ã 288/352 Ã 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate | H.264: 32 kbpsâ16384 kbps H.265: 12 kbpsâ16384 kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night | Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR | 140 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scene Self-adaptation (SSA) | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection | OFF/ON (4 areas, rectangular) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SKU | DH-IPC-HFW5449T-ASE-LED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Brand | Dahua |
