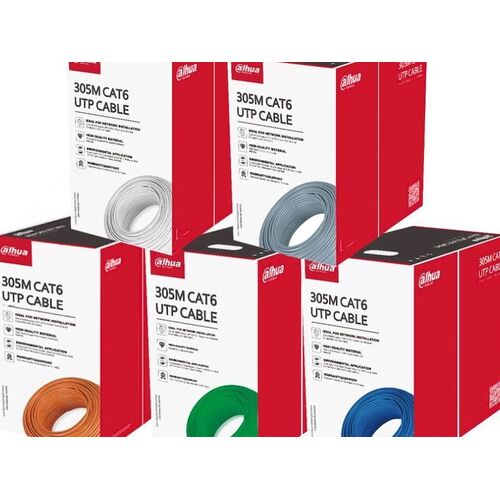

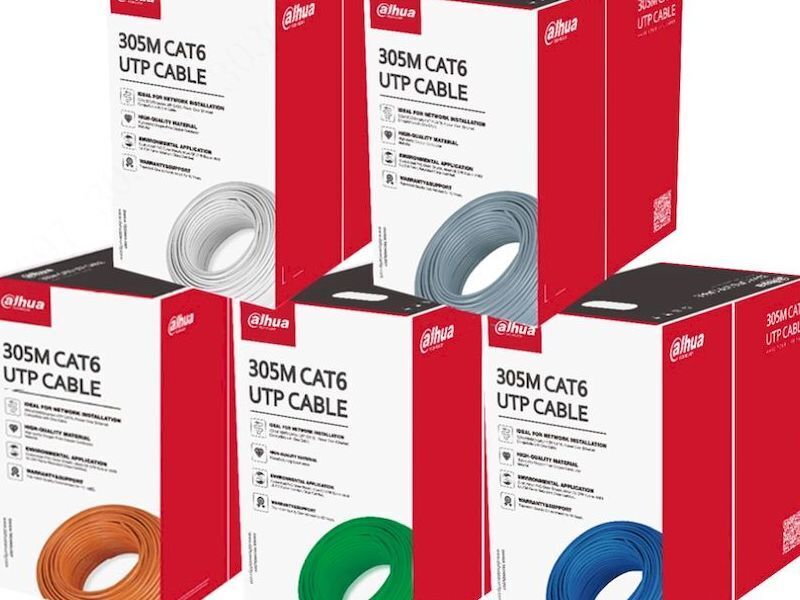

DAHUA DH-PFM920I-6UN-C CAT6 305M UTP CABLE, 4 PAIR, BLUE
Model # DH-PFM920I-6UN-C
DAHUASKU: DH-PFM920I-6UN-C
In Stock
PFM920I-6UN-C
UTP CAT6 Cable
> 305 m (1000 ft)/carton UTP CAT6, power over Ethernet, compatible with one cable
> High-purity oxygen-free copper conductor
> Customized PVC outer sheath; CE CPR Eca flame retardant class certified
> 10-year warranty
Conductor | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Material | Oxygen free copper (99.97% purity) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Diameter | 0.53 mm ± 0.01 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Insulation | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Material | HDPE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Average Thickness | 0.21 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Diameter | 0.95 mm ± 0.1 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Color (4 Pairs) | Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Separator | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Material | PE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Specification | Translucent 4.5 Ã 0.4 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rip Cord | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Material | Polyester | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Specification | 500D | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sheath | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Material | PVC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Average Thickness | 0.5 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Diameter | 6.0 mm ± 0.3 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Color | White | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electrical | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. DC Resistance of a Single Conductor | 8.7Ω/100 m | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Insulation Resistance | 5000MΩ·km | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. DC Resistance Unbalance | 2% (pair intra), 4% (pairs inter) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dielectric Strength | No breakdown with 1KV DC for 1 min | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Transmission | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Characteristic Impedance | 100 ± 15Ω | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Near End Cross Talk | â¥39.30 dB/100 m@250 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Attenuation | 34.8 dB/100 m@250 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Return Loss | â¥17.3 dB/100 m@250 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mechanical | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tensile Strength | Sheathâ¥13.5 MPa, insulationâ¥16 MPa | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Elongation at Break | Sheathâ¥150%, insulationâ¥300% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation Bending Radius | >8 times of outer cable diameter | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Conductor Elongation at Break | â¥10% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environmental | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Shrinkage of Insulation | â¤5% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Color Migration Resistance of Insulation | No migration | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sheath Tensile Strength and Elongation at Break after Aging | â¥12.5 MPa, â¥100% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Low Temperature Bending Test | No cracking after the test | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Heat Shock Test | No cracking after the test | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | â20°C to +60°C (â4°F to 140°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation Temperature | 0°C to +50°C (32°F to 122°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature and Humidity | â10°C to +40°C (14°F to 104°F), <60% (RH) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Security | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vertical Fire Propagation Test | Comply with IEC 60332-1-2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cable Length | 305.0 m (1000.66 ft) ± 1.5 m (4.92 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Inner Carton Dimensions | 416.0 mm à 412.0 mm à 220.0 mm (16.37" à 16.22" à 8.66") (L à W à H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Method | 305.0 m (1000.66 ft) a carton, one protection carton with 2 cartons inside | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | â¥10.5 kg (23.15 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | â¥11.5 kg (25.35 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compliance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Executive Standards | Q/DXJ 067-2019, EN50575-2014 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | CPR Eca |
Transmission Characteristics (100 m at 20°C) (328.08 ft at 68°F) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frequency (MHz) | Phase delay ⤠ns | IL ⤠dB | TCL⥠dB﹡ | EL TCTL⥠dB﹡ | NEXT ⥠dB | PS NEXT ⥠dB | |||||||||||||||||||||||||||||||||||||||||||||||||||||
1 | n/s | n/s | 50.0 | 35.0 | n/s | n/s | |||||||||||||||||||||||||||||||||||||||||||||||||||||
4 | 552.0 | 4.0 | 44.0 | 23.0 | 66.3 | 63.3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
8 | 547.0 | 5.6 | 41.0 | 16.9 | 61.8 | 58.8 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
10 | 545.0 | 6.4 | 40.0 | 15.0 | 60.3 | 57.3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
16 | 543.0 | 8.1 | 38.0 | 10.9 | 57.2 | 54.2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
20 | 542.0 | 9.0 | 37.0 | 9.0 | 55.8 | 52.8 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
25 | 541.0 | 10.1 | 36.0 | 7.0 | 54.3 | 51.3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
30﹡ | 540.6 | 11.0 | 35.2 | 5.5 | 53.1 | 50.1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
31.25 | 540.0 | 11.3 | 35.1 | n/s | 52.9 | 49.9 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
62.5 | 539.0 | 16.3 | 32.0 | n/s | 48.4 | 45.4 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
100 | 538.0 | 21.0 | 30.0 | n/s | 45.3 | 42.3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
200 | 537.0 | 30.7 | 27.0 | n/s | 40.8 | 37.8 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
250 | 536.0 | 34.8 | 26.0 | n/s | 39.3 | 36.3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Frequency (MHz) | EL FEXT ⥠dB | PS EL FEXT ⥠dB | RL ⥠dB | Delay skew ⤠ns | Zc(â¦) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
1 | n/s | n/s | n/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SKU | DH-PFM920I-6UN-C | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Brand | Dahua |
