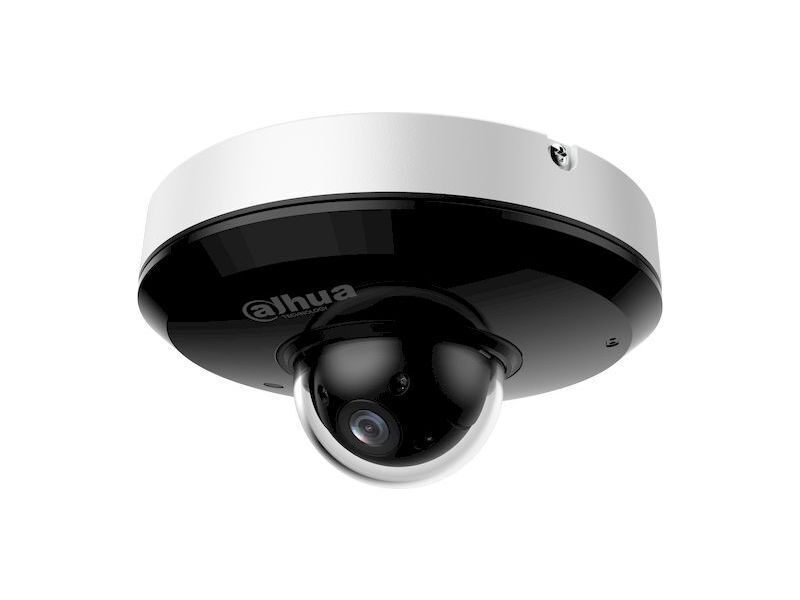

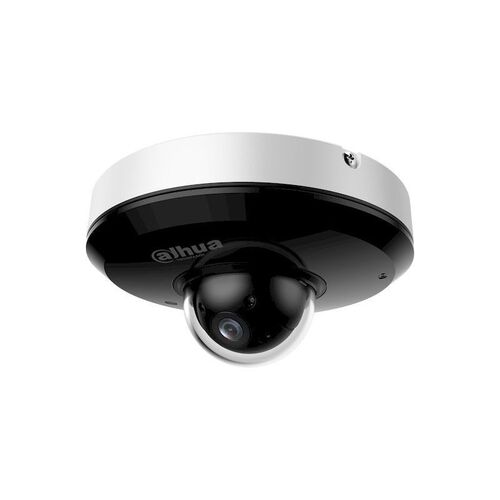

DAHUA DH-SD1A404DB-GNY 4MP PTZ,SD1A404DB,4X ZOOM,STARLIGHT IR AI WIZSENSE CAMERA
Model # DH-SD1A404DB-GNY
DAHUASKU: DH-SD1A404DB-GNY
In Stock
SD1A404DB-GNY
4MP 4x Starlight IR WizSense Network PTZ Camera
>Â 1/2.8" 4Megapixel CMOS.Â
>Â 4x optical zoom.Â
>Â Starlight technology.Â
>Â Max. 25/30 fps@4MP.Â
>Â IR distance up to 20 m.Â
>Â Perimeter protection.Â
>Â Face detection.Â
>Â SMD 3.0.Â
>Â Built-in Mic.Â
>Â IP66; IK08.
Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/2.8" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel | 4 MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution | 2560 (H) Ã 1440 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 256 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 512 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | 1 sâ1/30,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | 0.005 [email protected] (Color, 30 IRE); | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | 20 m (65.62 ft) (IR) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Manual; SmartIR; Off | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number | 3 (IR light) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 2.8 mmâ12 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture | F1.8âF2.7 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | H: 96.9°â31.6°; V: 51.4°â17.8°; D: 116.2°â36.4° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Zoom | 4x | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focus Control | Auto; semi-auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance | 0.2 mâ0.5 m (0.66 ftâ 1.64 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control | Fixed iris | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance | Detect | Observe | Recognize | Identify | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
240 m (787.40 ft) | 94.8 m (311.02 ft) | 48 m (157.48 ft) | 24 m (78.74 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt Range | Pan: 0° to 355°; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Manual Control Speed | Pan: 0.1°/sâ70°/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Preset Speed | Pan: 0.1°/sâ80°/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Preset | 300 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tour | 8 (up to 32 presets per tour) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power-off Memory | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Idle Motion | Preset; Tour | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ Protocol | DH-SD | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection | Supports face detection, snapshot, and face enhancement; Supports face cutout: Face, one-inch photo; Capturing strategies include real-time capturing and quality first. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
People Counting | Supports people counting, calculating the number of people in the area, and queue management. Only people counting supports the report function | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression | H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 4M (2560 Ã 1440); 3M (2304 Ã 1296); 1080p (1920 Ã 1080); 1.3M (1280 Ã 960); 720p (1280 Ã 720); D1 (704 Ã 576/704 Ã 480); VGA (640 Ã 480); CIF (352 Ã 288/352 Ã 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate | Main stream: 4M/3M/1080P/1.3M/720P@(1-25/30 fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate | H264: 96 Kbpsâ14,848 Kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night | ICR: Color; B/W; Auto; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control | Auto; manual; gain prio | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction | 2D NR; 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest (RoI) | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Stabilization | Electronic Image Stabilization (EIS) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Defog | Electronic | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Digital Zoom | 16Ã | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Rotation | 180° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | â¥55 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression | PCM; G.711A; G.711MU; G.726; MPEG2-Layer2; G.722.1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI; SDK | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SKU | DH-SD1A404DB-GNY | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Brand | Dahua |
