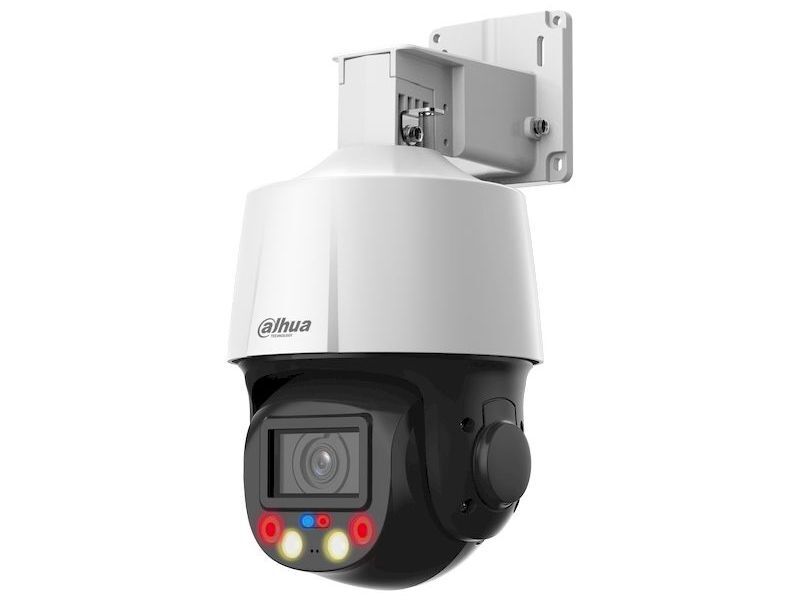

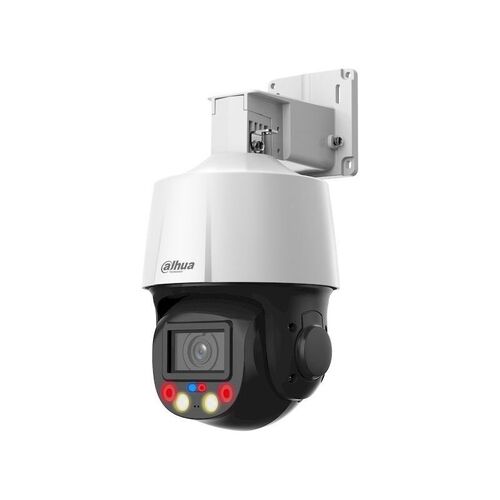

DAHUA DH-SD3E405DB-GNY-A-PV1 WIZSENSE SD3E405DB TIOC 4MP PTZ DOME CAMERA, 5X ZOOM, IR 50M
Model # DH-SD3E405DB-GNY-A-PV1
DAHUASKU: DH-SD3E405DB-GNY-A-PV1
SD3E405DB-GNY-A-PV1
4MP 5x TiOC WizSense Network PTZ Camera
> 1/2.8" 4Megapixel CMOS.
> 5x optical zoom.
> Max. 25/30fps@4M.
> IR distance up to 50 m.
> Warm light illumination distance up to 30 m.
> SMD 3.0.
> Perimeter protection.
> Face detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out.
> Built-in Mic and Speaker for Two-way Talk.
> 12 VDC/PoE power supply.
> IP66.
> Sound and light alarm (red and blue lights).
Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/2.8" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel | 4 MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution | 2560 (H) Ã 1440 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 128 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 512 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | 1/1 sâ1/30,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | Color: 0.005 [email protected] | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | 50 m (164.04 ft) (IR) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Zoom Prio; Manual; Auto; Off | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number | 2 (IR) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 2.7 mmâ13.5 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture | F1.6âF3.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | H: 94.9°â30.1°; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Zoom | 5Ã | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focus Control | Auto; semi-auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance | 1.5 m (4.92 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance | Detect | Observe | Recognize | Identify | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
270 m (885.83 ft) | 106.6 m (349.74 ft) | 54 m (177.17 ft) | 27 m (88.58 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt Range | Pan: 0° to 355° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Manual Control Speed | Pan: 0.1°/sâ36°/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Preset Speed | Pan: 35.7°/s; Tilt: 27.1°/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Preset | 300 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power-off Memory | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Idle Motion | Preset | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection | Supports face detection, snapshot, and face enhancement; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Auto Tracking Lite | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Active Deterrence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Light Warning | Red and blue light warning | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sound Warning | Offers 11 types of sound alarms, and supports importing up to 10 custom sound alarms. The sound alarm can be set to play 1 to 10 times | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression | H.264H;H.264B;Smart H.265+; H.264;H.265;MJPEG(Sub Stream);Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 4M (2560 Ã 1440); 3M (2304 Ã 1296); 1080p (1920 Ã 1080); 1.3M (1280 Ã 960); 720p(1280 Ã 720); D1 (704 Ã 576); VGA (640 Ã 480); CIF (352 Ã 288) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate | Main stream: 4M/3M/1080p/1.3M/720p @(1â25/30 fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate | H.264: 96 kbpsâ14848 kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night | Auto (ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control | Auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction | 2D NR; 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest (RoI) | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Stabilization | Electronic (EIS) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Defog | Electronic | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Digital Zoom | 16Ã | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Rotation | 180° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | â¥55 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression | G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol | FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;SMB;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | CGI;SDK;ONVIF (Profile S&G&T);P2P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Method | Unicast/Multicast | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host | 20 (total bandwidth: 64 M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage | FTP/SFTP; Micro SD card (512 GB); NAS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser | IE 9 and later versions | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software | DMSS;DSS Pro | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Client | iOS;Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE: EN55032/EN55024/EN50130-4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input | 1 channel (LINE IN, bare wire,built-in mic (mutually exclusive)) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output | 1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive)) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Linkage | Capture; recording; send email; preset; alarm digital input; audio; warning light | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm I/O | 1/1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio I/O | 1/1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 12 VDC, 2 A ± 10% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | Basic: 4.5 W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | â30 °C to +60 °C (â22 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | â¤95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection | IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions | 142.6 mm à 140 mm à 236.1 mm (5.61" à 5.51" à 9.29") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 1.5 kg (3.31 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 2.1 kg (4.63 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SKU | DH-SD3E405DB-GNY-A-PV1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Brand | Dahua |
