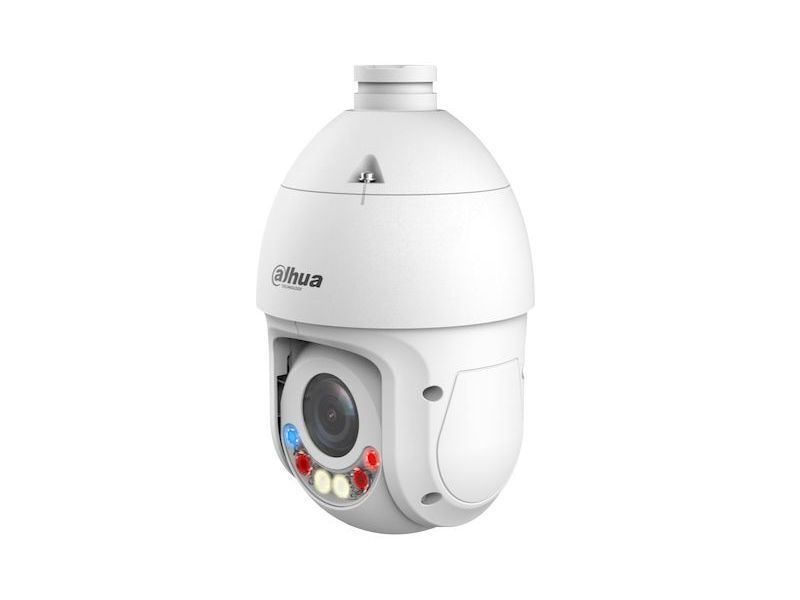

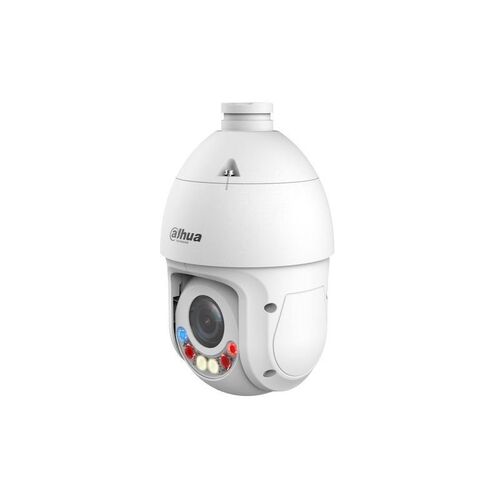

DAHUA DH-SD4E425GB-HNR-A-PV1 WIZSENSE SD4E425GB TIOC 4MP PTZ CAMERA, 25X ZOOM, IR 150M
Model # DH-SD4E425GB-HNR-A-PV1
DAHUASKU: DH-SD4E425GB-HNR-A-PV1
SD4E425GB-HNR-A-PV1
4MP 25x Starlight IR WizSense Network PTZ Camera
> 1/2.8" 4Megapixel STARVIS⢠CMOS.Â
>Â 25x optical zoom.Â
>Â Starlight technology.Â
>Â Max. 25/30fps@4M.Â
>Â IR distance up to 100 m.Â
>Â Auto-tracking 3.0.Â
>Â Perimeter protection.Â
>Â Face detection.Â
>Â SMD 4.0.Â
>Â IP66.Â
>Â Full-color illuminator; red and blue warning light.
Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/2.8" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel | 4 MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution | 2560 (H) Ã 1440 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 4 GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 1 GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | 1/1 sâ1/30,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | Color: 0.005 [email protected] | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | 100 m (328.08 ft) (IR) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Zoom Prio; Manual; Auto; Off | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number | 2 (IR) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 5 mmâ125 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture | F1.6âF3.6 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | H: 51.9°â3.0°; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Zoom | 25Ã | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focus Control | Auto; semi-auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance | 0.1 mâ0.5 m (0.33 ftâ1.64 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control | Auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance | Detect | Observe | Recognize | Identify | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
2500 m (8208.10 ft) | 987.5 m (3239.83 ft) | 500 m (1640.42 ft) | 250 m (820.21 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt Range | Pan: 0° to 360° endless | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Manual Control Speed | Pan: 0.1°/sâ200°/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Preset Speed | Pan: 240°/s; Tilt: 200°/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Preset | 300 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tour | 8 (up to 32 presets per tour) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pattern | 5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scan | 5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power-off Memory | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Idle Motion | Pattern; Preset; Scan; Tour | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection | Supports face detection, face bounding box, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. The attributes are gender, age, glasses, mask, mustache and expressions. The expressions are angry, sad, hate, scared, surprised, calm, happy and confused. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Auto Tracking | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Active Deterrence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Light Warning | Red and blue warning light. They can be configured to flash for 5 to 30 seconds with a high, medium or low frequency. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sound Warning | Offers 11 types of sound alarms, and supports importing custom sound alarms. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression | H.264H;H.264B;Smart H.265+;H.265;MJPEG(Sub Stream);Smart H.264+;H.264M | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 4M (2560 Ã 1440); 3M (2048 Ã 1536); 3M (2304 Ã 1296); 1080p (1920 Ã 1080); 1.3M (1280 Ã 960); 720p (1280 Ã 720); D1 (704 Ã 576/704 Ã 480); VGA (640 Ã 480); CIF (352 Ã 288/352 Ã 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate | Main stream: 4M/3M/1080p/1.3M/720p@ (1â25/30 fps) Sub stream 1: D1/CIF/VGA@(1â25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1â25/30 fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate | H264: 96 Kbpsâ14848 Kbps H265: 38 Kbpsâ8960 Kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night | Auto (ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction | 2D/3D | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest (RoI) | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Stabilization | Electronic (EIS) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Defog | Electronic | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Digital Zoom | 16Ã | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Rotation | 180° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view; multiple colors available | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | ⥠55 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SKU | DH-SD4E425GB-HNR-A-PV1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Brand | Dahua |
