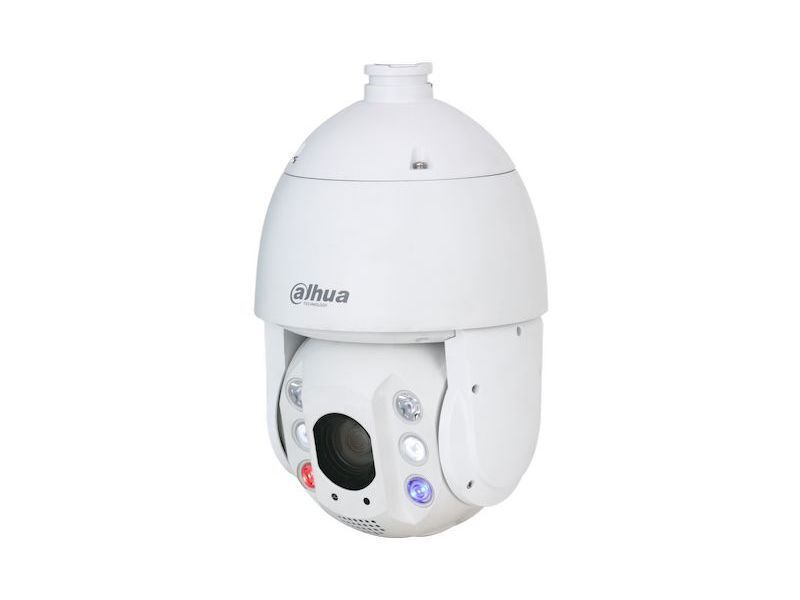

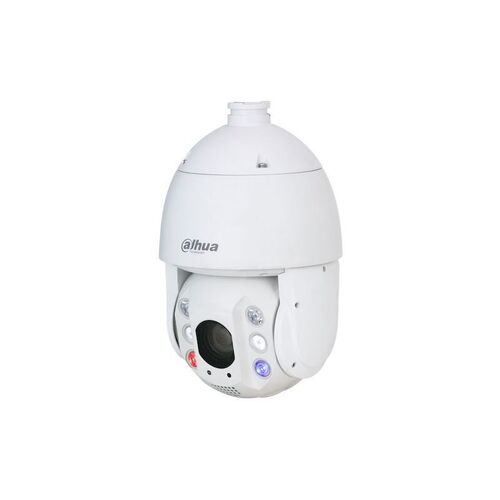

DAHUA DH-SD6C3425GB-HNR-A-PV1 WIZSENSE SD63425GB TIOC 4MP PTZ CAMERA, 25X ZOOM, IR 150M
Model # DH-SD6C3425GB-HNR-A-PV1
DAHUASKU: DH-SD6C3425GB-HNR-A-PV1
Sold Out
SD6C3425GB-HNR-A-PV1
4MP 25x Starlight TiOC Network PTZ Camera
> 1/2.8" 4Megapixel STARVIS⢠CMOS.Â
>Â 25Ã optical zoom.Â
>Â Starlight technology.Â
>Â Max. 25/30 fps@4MP.Â
>Â IR distance up to 150 m.Â
>Â Perimeter protection.Â
>Â Face detection.Â
>Â Full-color illuminator; red and blue warning light.Â
>Â Auto tracking 3.0Â
>Â Quick Pick.
Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/2.8" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel | 4 MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution | 2560 (H) Ã 1440 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 4 GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 1 GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | 1/1 sâ1/30,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | Color: 0.005 [email protected] | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | 50 m (164.04 ft) (white light) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Zoom Prio; Manual; Smart IR; Off | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number | 2 (IR) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 5 mmâ125 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture | F1.6âF3.6 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | H: 51.9°â3.0°; V: 39.7°â2.2°; D: 63.1°â3.7° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Zoom | 25Ã | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focus Control | Auto; semi-auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance | 0.1 mâ1.5 m (0.33 ftâ4.92 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control | Auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance | Detect | Observe | Recognize | Identify | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
2,500 m (8202.10 ft) | 987.5 m (3239.83 ft) | 500 m (1640.42 ft) | 250 m (820.20 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt Range | Pan: 0° to 360° endless | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Manual Control Speed | Pan: 0 °/sâ240 °/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Preset Speed | Pan: 240 °/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Preset | 300 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tour | 8 (up to 32 presets per tour) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pattern | 5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scan | 5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power-off Memory | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Idle Motion | Pattern; Preset; Scan; Tour | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ Protocol | DH-SD | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection | Supports face detection, face bounding box, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Auto Tracking | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Quick Pick | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Active Deterrence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Light Warning | Red and blue warning light. They can be configured to flash for 5 to 30 seconds with a high, medium or low frequency. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sound Warning | Customizable sound alarm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression | H.264H;H.264B;Smart H.265+;H.264;H.265;MJPEG(Sub Stream);Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 4M (2560 Ã 1440); 3M (2048 Ã 1536); 3M (2304 Ã 1296); 1080p (1920 Ã 1080); 720p (1280 Ã 720); 1.3M (1280 Ã 960); D1 (704 Ã 576/704 Ã 480); VGA (640 Ã 480); CIF (352 Ã 288/352 Ã 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate | Main stream: 4M/3M/1080p/1.3M/720p@ (1â25/30 fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate | H264: 96 kbpsâ14848 kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night | Auto (ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control | Auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction | 2D NR; 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest (RoI) | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Stabilization | Electronic (EIS) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Defog | Electronic | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Digital Zoom | 16Ã | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Rotation | 180° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SKU | DH-SD6C3425GB-HNR-A-PV1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Brand | Dahua |
