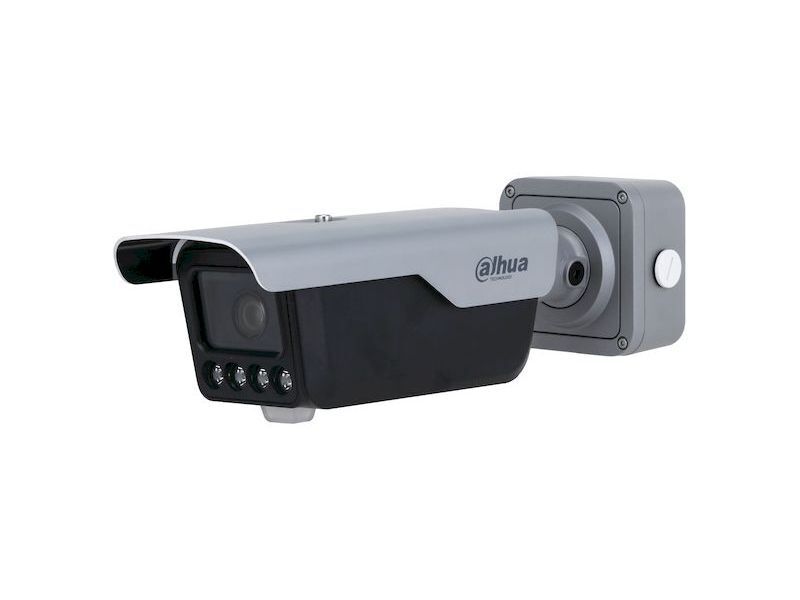

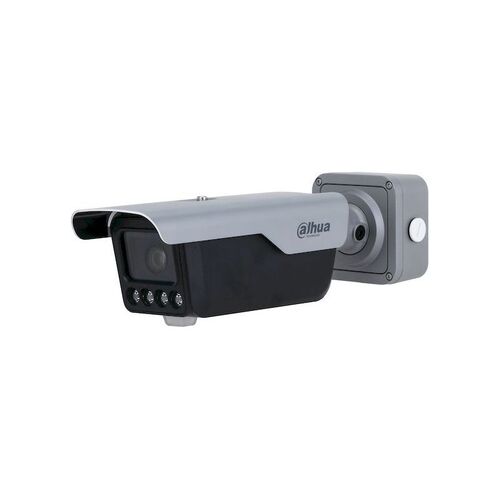

DAHUA DHI-ITC413-PW4D-IZ3 4MP Access ANPR Camera
Model # DHI-ITC413-PW4D-IZ3
DAHUASKU: DHI-ITC413-PW4D-IZ3
Sold Out
ITC413-PW4D Series
Dahua Access ANPR Camera
> High-performance CMOS image sensor and processor that supports continuously extracting metadata 24/7.
> Adopts intelligent deep learning algorithms and supports recognition of unlicensed vehicles and the type, brand and color of vehicles.
> Built-in signal port, data port, communication port and remote controllers assist in controlling external devices such as entry and exit barriers.
> Built-in LED for simplified installation and commissioning.
> All-in-one structure with junction box and bracket, and it is also low power consumption.
> IP67 and IK10 rated.
> Supports intrusion and loitering detection and triggers light and voice alarms when perimeter events occur to actively deter targets. Custom audios can also be imported and edited.
> Easily adapts to scenarios through its motorized vari-focal lens.
Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/1.8" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Resolution | 2688 Ã 1520 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Auto/Manual 1/25 sâ1/100,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Detection Speed | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:80 km/h | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | DHI-ITC413-PW4D-Z1,DHI-ITC413-PW4D-IZ1: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 4 GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 1 GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | >56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | progressive scanning | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1: 2.7 mmâ12 mm 8 mmâ32 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focus Control | Auto, area focus, manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Number of Lens | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type | Motorized Vari-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:1.4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:DC-Iris | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
W: (DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1) | 60.4 m (198.16 ft) | 24.2 m (79.40 ft) | 12.1 m (39.70 ft) | 6.0 m (19.68 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
T: (DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1) | 128.7 m (422.24 ft) | 51.5 m (168.96 ft) | 25.7 m (84.32 ft) | 12.9 m (42.32 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
W: (DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3) | 160.0 m (524.93 ft) | 64.0 m (209.97 ft) | 32.0 m (104.99 ft) | 16.0 m (52.49 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
T: (DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3) | 406.9 m (1334.97 ft) | 162.8 m (534.12 ft) | 81.4 m (267.06 ft) | 40.7 m (133.53 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number | 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Auto, manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Type | DHI-ITC413-PW4D-IZ1, DHI-ITC413-PW4D-IZ3:IR (850 nm) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Illumination | According to the brightness of the environment, the camera automatically adjusts the intensity of its light to reveal the details of moving targets. Devices with warm light can automatically adjust the light intensity according to the time. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Infrared Wavelength | DHI-ITC413-PW4D-IZ1, DHI-ITC413-PW4D-IZ3:850 nm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Resolution | Main stream: 4M (2688 Ã 1520)/1080p (1920 Ã 1080)/720p (1280 Ã 720) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stream | PAL: Main stream (2688 Ã 1520@25 fps, 1920 Ã 1080@25 fps, 1280 Ã 720@25 fps), sub stream (1280 Ã 720@25 fps, 960 Ã 576@25 fps, 704 Ã 576@25 fps, 352 Ã 288@25 fps); | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression | H.264H; H.264B; H.264M by default; H.265; MJPEG; H.264M | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate | H.264B: 2,179 kbpsâ13,074 kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scene Self-adaptation (SSA) | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control | Manual; Auto | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest (RoI) | Yes, 3 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Tampering Prevention | Yes. Watermarks can be added to videos and images. The watermark can also be verified. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR; VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage | Bult-in TF card port. Supports Kingston 16 G, 32 G, 128 G, 256 G; Dahua card 16 G, 32 G, 128 G, 256 G; SanDisk 16 G, 32 G, 128 G, 256 G | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Restricted List/Trusted List | Allowlist: 110,000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS | Intrusion detection, loitering detection, up to 4 areas can be set. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Basic Event | Alarms for events of defocus, no storage card, storage card no space, storage card error, network disconnection, IP conflict, and illegal access. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sound and Light Alarm | Yes, blue & red indicator, and supports broadcasting custom audio. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Linkage | Upload to FTP/Memory card, notify monitoring center, send e-mail, trigger alert output, snapshot and active deterrence | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Capture Distance | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1: 3 mâ8 m (9.84 ftâ26.25 ft) 8 mâ30 m (26.25 ftâ98.43 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Detected Width | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1: 3 mâ4 m (9.84 ftâ13.12 ft) 6 mâ8 m (19.69 ftâ26.25 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol | HTTP; Https; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; NTP; SFTP;DDNS; SNMP; PPPoE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDK | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF (Profile S/Profile T); CGI; ITSAPI; P2P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software | DSS Pro; DSS Express; Cybercity; Smart PSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Security | Username and password; MAC address; HTTPS; IEEE 802.1x; network access control | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser | Plug in: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Encoding Format | JPEG | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Setting | Brightness; contrast; saturation; gamma; sharpness; gain; white balance | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night | IR filter, support three modes: color/B/W/auto | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR | 140 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance | Auto; Regional Custom; Manual; Outdoor; Natural; Street Lamp | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Digital Detail Enhancement (DDE) | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
OSD Overlay | Supports overlay of time; address (position of channel), lane (number/direction), plate (number and color), vehicle (speed, color, type) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Port | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Built-in MIC | Yes; Pick-up distance: 3 m (9.84 ft), Sampling Rate: 48 k. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Built-in Speaker | Yes; Power: 2 W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output | 1 channel (RCA port)
