DAHUA IP DHI-KTP03 INTERCOM KIT, VTO2111D, VTH2621G, BLACK, SURFACE

Model# DHI-KTP03

DAHUASKU: DHI-KTP03


$469.20

Sold Out

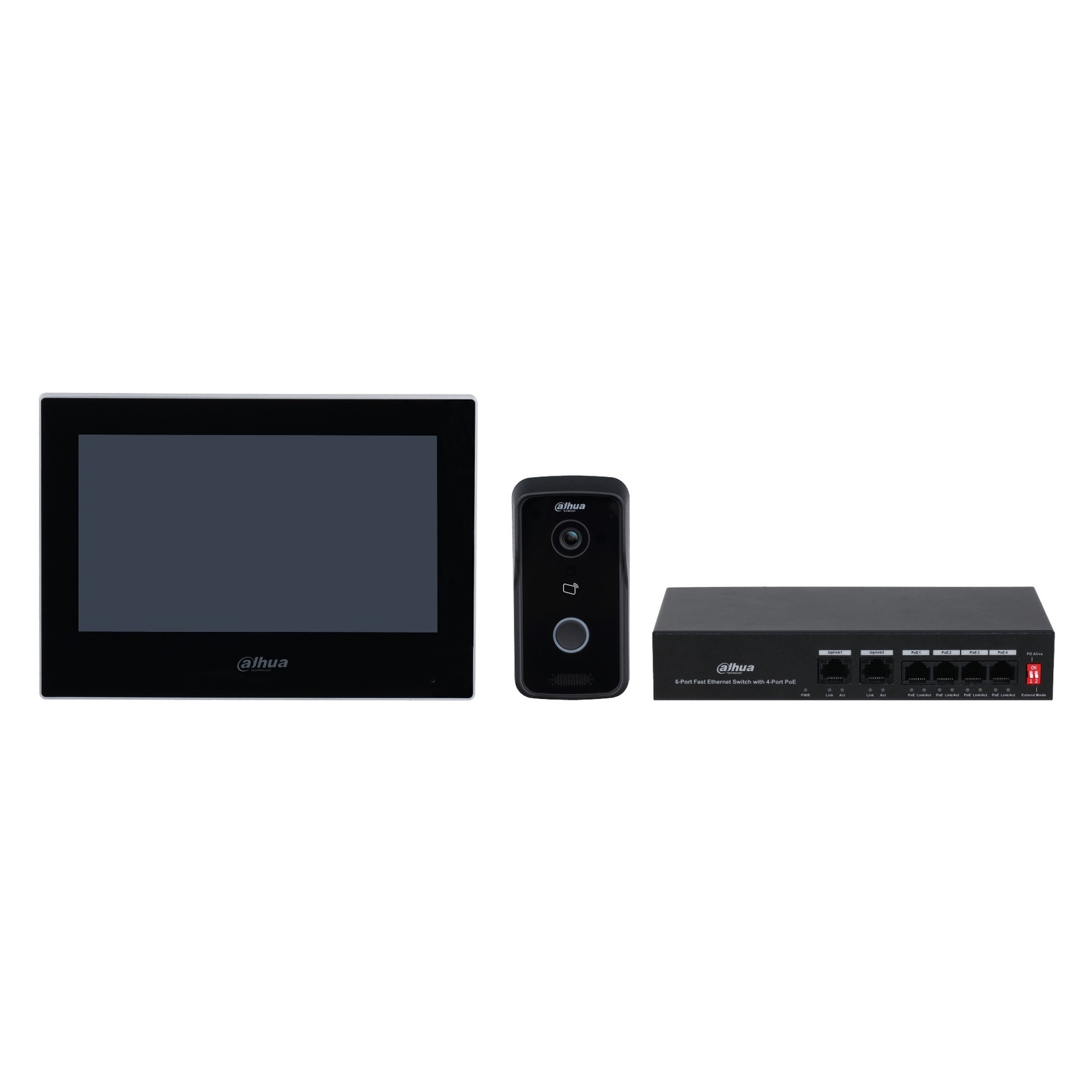

DAHUA IP DHI-KTP03 INTERCOM KIT, VTO2111D, VTH2621G, BLACK, SURFACE

IP Video Intercom KIT

IP Villa Door Station

> Megapixel image sensor

> Supports IR illumination and night vision.

> Two-way audio and voice call through app.

> Can be managed through the management platform; supports voice call between App and the door station.

> Card unlock, unlock on the indoor monitor, and remote unlock through the App.

> Supports IP65 (Silicone sealant is needed.

> For details, see the quick start guide.)

> Supports 10000 cards.

> Supports standard PoE power supply.

> Controls two locks.





IP Indoor Monitor

> 7" TFT capacitive touch screen, 1024 × 600.

> 6-channel alarm input and 1-channel alarm output.

> Standard PoE.

> Door station and IPC monitor.

> H.265 and H.264 video decoding.

> High performance & cost-effective

.



selector-pcimg

Product Selector

Technical Specification

Model

DHI-VTO2111D-P-S3

System

Main Processor

Embedded Processor

Operating System

Embedded Linux OS

Button Type

Mechanical

Interoperability

ONVIF; CGI

Network Protocol

SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP

Basic

Camera

1/2.8" 2 MP CMOS high definition, low illumination/DWDR/ color/IR

Field of View

H: 107°; V: 60°; D: 122°

Noise Reduction

3D NR

Video Compression

H.264; H.265

Video Resolution

Main stream: 720p, WVGA, D1, CIF
Sub stream: 1080p, WVGA, D1, QVGA, CIF

Video Frame Rate

PAL: 25 fps;
NTSC: 30 fps

Video Bit Rate

256 Kbps–8 Mbps

Light Compensation

Auto IR

Day/Night

Auto(ICR)/Color/B/W;Color/B/W

Audio Compression

G.711a; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression/digital noise reduction

Audio Bit Rate

16 KHz, 16 bit

Function

Communication Mode

Full digital

Unlock Mode

Card; app; indoor monitor

Card Type

IC card

Leave Videos

Yes (SD card inserted in VTH is needed)

Web Configuration

Yes

Performance

Card Reading Distance

0 cm–4.5 cm (0"–1.77")

Issue Card Locally

Yes

Casing Material

PC + Acrylic

Capacity

Card Capacity

10000

Port

RS-485

1

Power Output

1 port, 12 V and 200 mA

Exit Button


SKU DHI-KTP03
Brand Dahua
Shipping Weight 1.0000kg

Manufacturer Warranty: 3 Years Manufacturer Warranty
