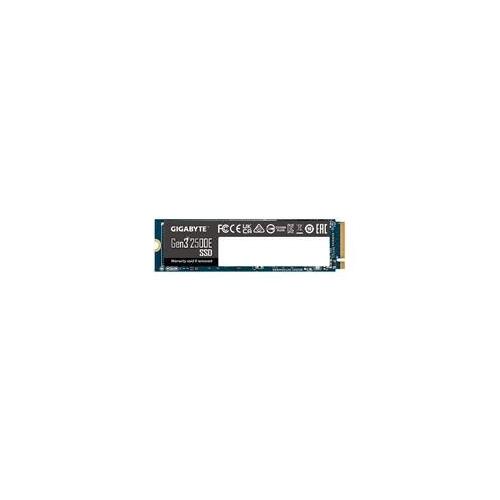

Gigabyte Gen3 2500E 500GB PCIe 3.0 NVMe M.2 2280 SSD - G325E500G

Model # GP-G325E500G

GIGABYTESKU: GP-G325E500G


$59.16

RRP $80.00
SAVE $20.84
Sold Out

GP-G325E500G

GIGABYTE 500GB GEN3 NVMe M.2 PCIe3 SSD, UP TO READ 2300MB/s, WRITE 1500MB/s Gigabyte Gen3 2500E 500GB PCIe 3.0 NVMe M.2 2280 SSD - Storage Capacity: 500GB - Sequential Read Speed: Up to 2300 MB/s - Sequential Write Speed: Up to 1500 MB/s - Random 4K Read: Up to 60K - Random 4K Write: Up to 240K - Interface: 4x PCIe 3.0 NVMe 1.3 - Controller: Phison - Security: TRIM, SMART, and Over-Provision support - TBW: 120TBW - MTBF: 1.5 million hours - HMB (Host Memory Buffer) supported, Energy-efficient

  • Interface
    Interface
    PCIe 3.0x4, NVMe1.3 interface
  • Form Factor
    Form Factor
    M.2 2280
  • Total Capacity
    Total Capacity
    500GB
  • External DDR Cache
    External DDR Cache
    N/A
  • Sequential Read speed
    Sequential Read speed
    Up to 2300 MB/s
  • Sequential Write speed
    Sequential Write speed
    Up to 1500 MB/s
  • Random Read IOPS
    Random Read IOPS
    Up to 60K
  • Random Write IOPS
    Random Write IOPS
    Up to 240K
  • Dimension
    Dimension
    22 x 2.3 x 80 mm
  • Mean time between failure (MTBF)
    Mean time between failure (MTBF)
    1.5 million hours
  • Power Consumption (Active)
    Power Consumption (Active)
    Average R : 2670mW
    Average W : 3200mW
  • Power Consumption (Idle)
    Power Consumption (Idle)
    Idle : 30mW
    L1.2 < 5mW
  • Temperature (Operating)
    Temperature (Operating)
    0°C to 70°C
  • Temperature (Storage)
    Temperature (Storage)
    -40°C to 85°C
  • Warranty
    Warranty
    • 1. Limited 3 years or 120TBW.
    • 2. Limited warranty based on 3 years or 120TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
      *TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
    • 3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)
  • Note
    Note
    • • Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
    • • Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
    • • Speeds based on internal testing. Actual performance may vary.
    • • 1GB = 1 billion bytes. Actual useable capacity may vary.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
