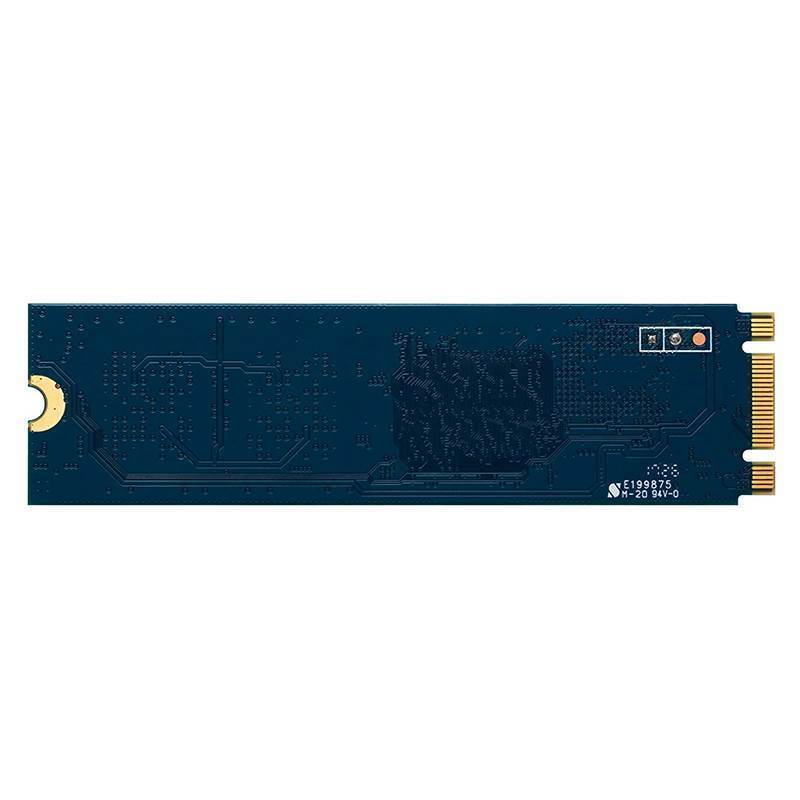

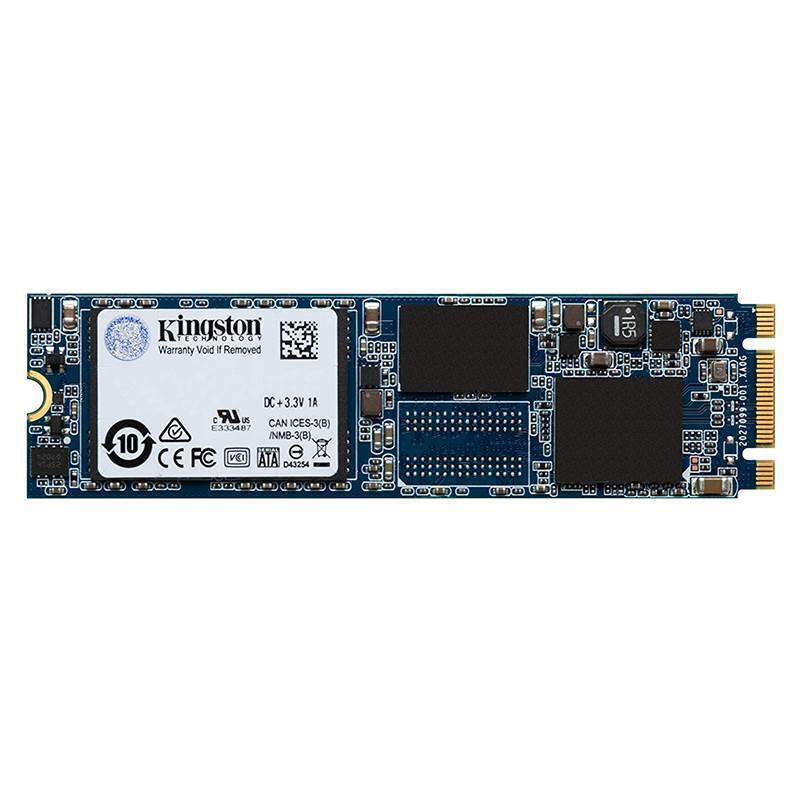

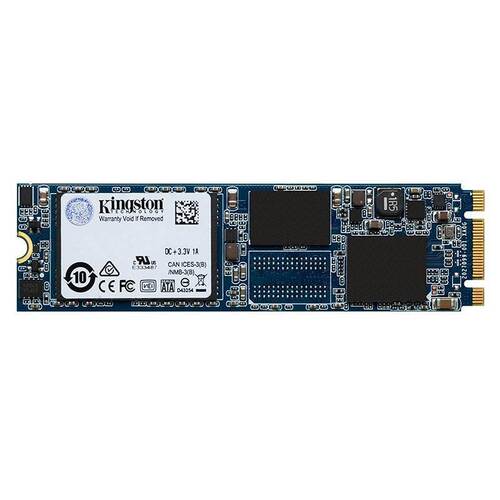

Kingston SSDNow UV500 480GB M.2 SSD SUV500M8/480G

Model # SUV500M8/480G

KINGSTONSKU: SUV500M8-480G


$166.26

RRP $256.00
SAVE $89.74
Sold Out

SUV500M8-480G

Kingston SSDNow UV500 480GB M.2 SSD SUV500M8/480G - Sequential read/write up to 520/500MB/s - Maximum 4K read/write up to 79,000/35,000 IOPS - Controller: Marvell 88SS1074 - AES 256-bit Hardware Encryption Self-Encrypting Drive (SED) and TCG Opal 2.0 - 5 Years Limited Warranty

Form factor mSATA
Interface SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s)
Capacities1 120GB, 240GB, 480GB
Controller Marvell 88SS1074 Controller
NAND 3D TLC
Encryption Encryption Support (AES 256-bit)
Sequential Read/Write2 120GB — up to 520/320MB/s
240GB — up to 520/500MB/s
480GB — up to 520/500MB/s
Maximum 4K Read/Write2 120GB — up to 79,000/18,000 IOPS
240GB — up to 79,000/25,000 IOPS
480GB — up to 79,000/35,000 IOPS
Power Consumption 0.195W Idle / 0.5W Avg / 1.17W (MAX) Read / 2.32 W (MAX) Write
Dimensions 100.1mm x 69.85mm x 7mm (2.5”)
80mm x 22mm x 3.5mm (M.2)
50.8mm x 29.85mm x 4.85mm (mSATA)
Operating temperature 0°C~70°C
Storage temperature -40°C~85°C
Weight 120GB — 6.2g (mSATA)
240GB – 480GB — 6.7g (mSATA)
Vibration operating 2.17G Peak (7–800Hz)
Vibration non-operating 20G Peak (10–2000Hz)
Life expectancy 1 million hours MTBF
Warranty/support3 Limited 5-year warranty with free technical support
Total Bytes Written (TBW)4 120GB — 60TB
240GB — 100TB
480GB — 200TB
SKU SUV500M8-480G
Barcode # 740617274103
Brand KINGSTON
Manufacturer Warranty
