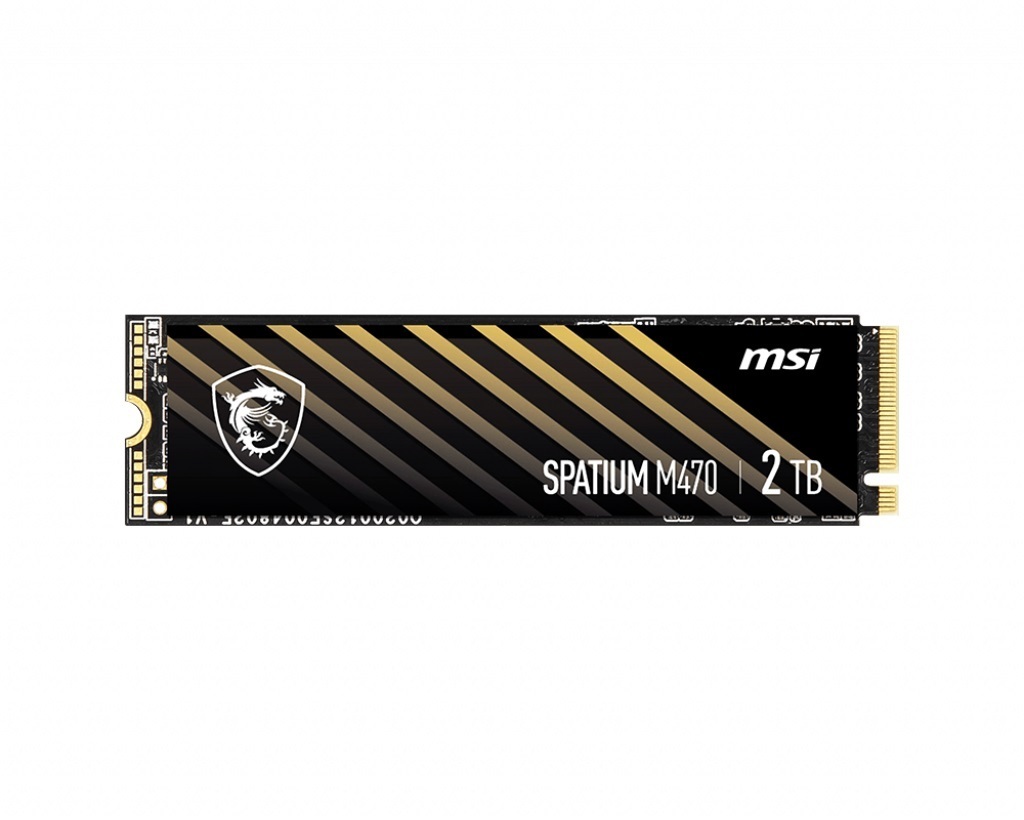

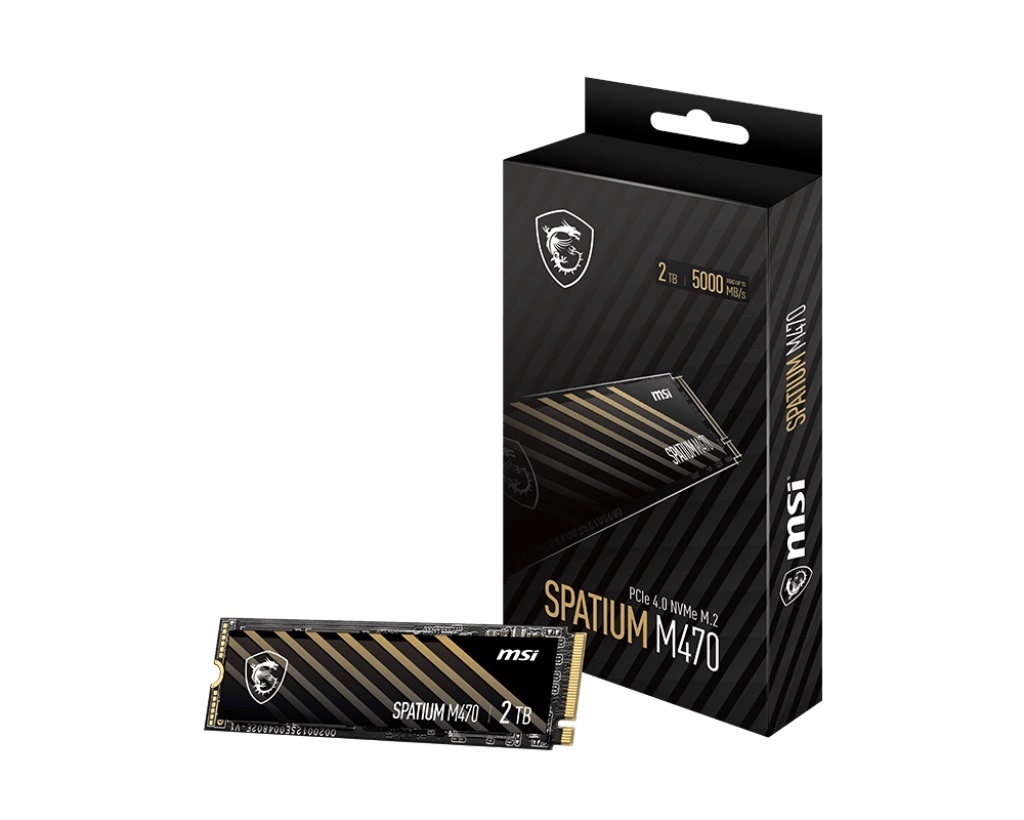

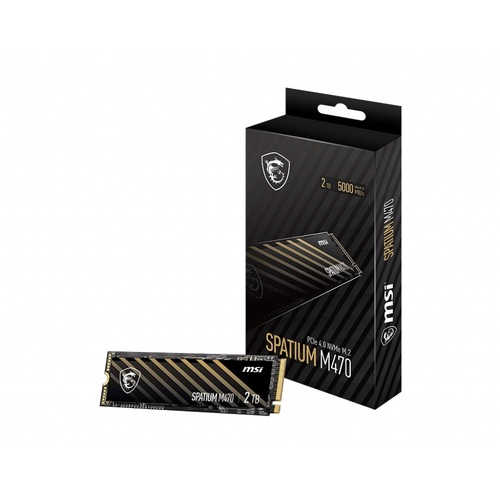

MSI 1TB M470 PCIe 4.0 NVMe M.2 SSD, 5000/4400 MB/s Read/Write, PCI-E NVMe 1.3, 1600 TBW, 5 Year Warranty

SPATIUM M470 PCIe 4.0 NVMe M.2
PCIe Gen4x4 interface and complies with the NVMe 1.3 standard
Sequential Read speeds up to 5000MB/s and Write speeds up to 4400MB/s
Up to 3300 TBW
Built-in data security and error-correction capabilities
1TB to 2TB capacities in M.2 2280 form factor
Suitable for both desktop and notebook
5-Year Warranty

MODEL NAME    SPATIUM M470 PCIe 4.0 NVMe M.2
CAPACITY    1TB
CONTROLLER    PHISON E16
FLASH MEMORY    3D NAND
DRAM CACHE    1GB DDR4
FORM FACTOR    M.2 2280
INTERFACE    PCIe Gen4x4, NVMe 1.3
COMPATIBILITY    PCIe Gen4 / Gen3 / Gen2 / Gen1
DIMENSIONS    80.00mm (L) x 22.00mm (W) x 2.15mm (H)
SEQUENTIAL READ UP TO (MB/S)    5000
SEQUENTIAL WRITE UP TO (MB/S)    4400
RANDOM READ 4KB UP TO (IOPS)    600,000
RANDOM WRITE 4KB UP TO (IOPS)    600,000
MAXIMUM OPERATING POWER (W)    6.3
IDLE POWER PS3 (MW)    20
LOW POWER L1.2 (MW)    2
OPERATING TEMPERATURES    0°C – 70°C
STORAGE TEMPERATURES    -40°C – 85°C
TERABYTES WRITTEN (TBW)    1600
MEAN TIME BETWEEN FAILURE (MTBF)    Up to 1,700,000 Hours
LIMITED WARRANTY    5 Years, or the coverage for the maximum TBW as stated, whichever comes first.
ADVANCED FEATURES    TRIM (Performance Optimization, OS support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
TCG OPAL2.0/Pyrite (Encryption, Data Security)
