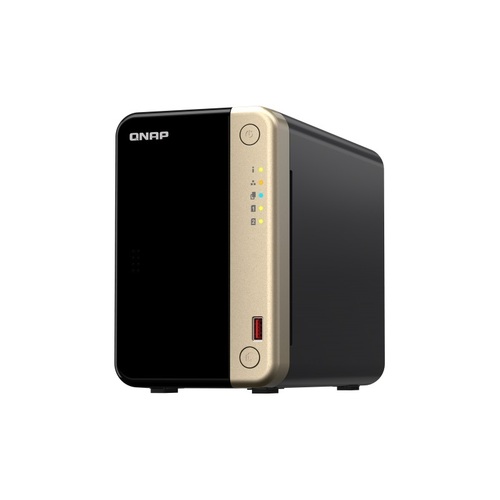

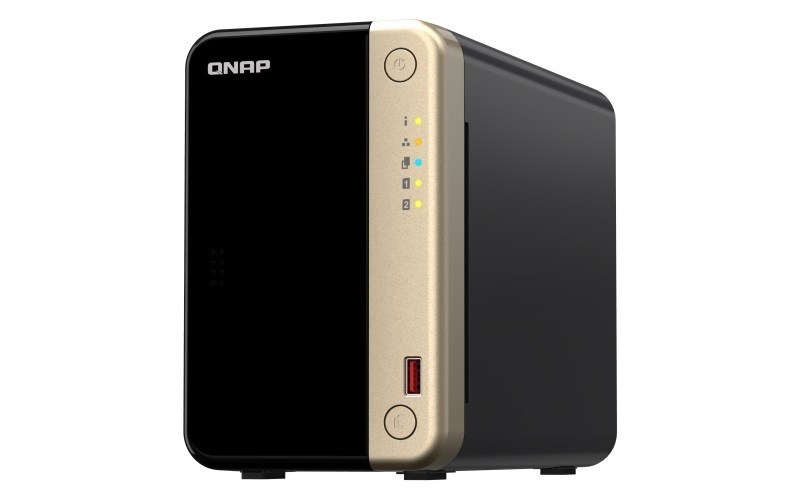

QNAP TS-264-8G 2-Bay Diskless NAS Celeron N5095 8GB

QNAP TS-264-8G 2-Bay Diskless NAS Celeron N5095 8GB

Model # TS-264-8G

SKU: TS-264-8G

$699.00
WAS $739.50

RRP $949.00
SAVE 26%
In Stock
Maximum Order Quantity 2

Powered by an Intel® Celeron® N5095, quad-core processor (burst up to 2.9GHz), the TS-264 features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. With M.2 PCIe Gen3 and PCIe Gen 3 slots, the TS-264 provides flexibility in extending NAS functionality, allowing you to install a QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition and various 10GbE/5GbE network cards. The TS-264 comes with 8 GB RAM for running light VMs and Containers, and supports multi-cloud backup, cloud storage gateways, 4K HDMI output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable 2.5GbE NAS.

Intel® Celeron® N5095 (or N5105) 4-core/4-thread processor, burst up to 2.9 GHz, 8 GB on board (non-expandable)

  • 2.5GbE connectivity

    Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.

  • M.2 SSD caching

    Dual M.2 PCIe Gen 3 slots enable NVMe SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition.

  • PCIe expandability

    Install a PCIe Gen3 x2 card to expand the core functionality of the TS-264, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card.

  • License-free virtualized environment

    Host multiple containerized apps to run a wide range of applications and services.

  • Drives Auto-Tiering

    Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.

  • 4K HDMI

    4K H.264 hardware decoding and real-time transcoding for smooth big screen multimedia experience.


CPU Intel® Celeron® N5095 (or N5105) 4-core/4-thread processor, burst up to 2.9 GHz
CPU Architecture 64-bit x86
Graphic Processors Intel® UHD Graphics
Floating Point Unit
Encryption Engine (AES-NI)
Hardware-accelerated Transcoding
System Memory 8 GB on board (non-expandable)
Maximum Memory 8 GB
Flash Memory 4GB (Dual boot OS protection)
Drive Bay 2 x 3.5-inch SATA 6Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
M.2 Slot 2 x M.2 2280 PCIe Gen 3 x1
SSD Cache Acceleration Support

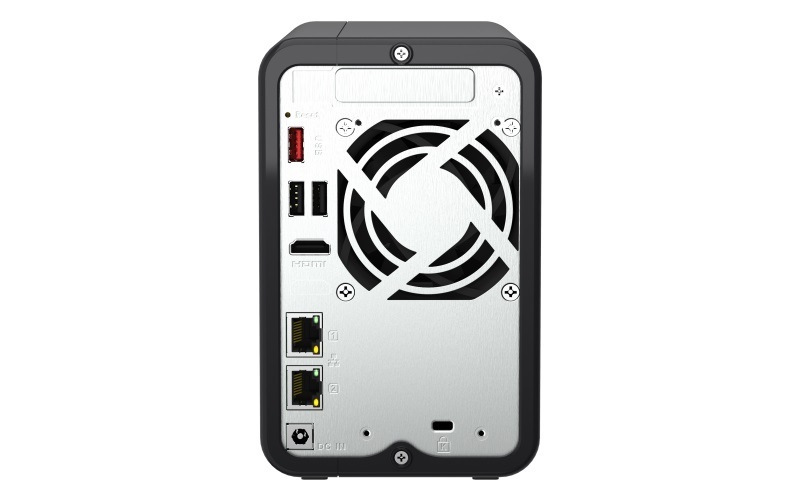

2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 1
Slot 1: PCIe Gen 3 x2
USB 2.0 port 2
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-A
IR Sensor (Optional QNAP RM-IR004 remote control)
HDMI Output 1, HDMI 2.0
Form Factor Tower
LED Indicators Power/Status, LAN, USB, HDD1-2
Buttons Power, USB copy, Reset
Dimensions (HxWxD) 168 × 105 × 226 mm
Weight (Net) 1.55 kg
Weight (Gross) 2.68 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 65W adapter, 100-240V
Power Consumption: HDD Sleep Mode 8.198 W
Power Consumption: Operating Mode, Typical 12.448 W
Tested with drives fully populated.
Fan 1 x 70mm, 12VDC
System Warning Buzzer
Kensington Security Slot
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 1500
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
  1.
    Operating System

    QTS 5.0.1
    Supported Client Operating Systems
    1. Apple Mac OS 10.10 or later
    2. Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
    3. IBM AIX 7, Solaris 10 or later UNIX
    4. Microsoft Windows 7, 8, 10 and 11
    5. Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, and 2019
    Show more...
    Supported Browsers
    1. Apple Safari (latest version)
    2. Google Chrome (latest version)
    3. Microsoft Edge (latest version)
    4. Mozilla Firefox (latest version)
    Supported Languages

    Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
    Storage Pool


    SED Storage Pool


    Maximum Pool size

    308 TB
    Maximum number of storage pool

    128
    Volume Type

    Thick, Thin, Static
    Maximum volume size

    250 TB

    Note: At least 4 GB RAM is required.
    Maximum number of volume

    128
    Maximum shared folder size

    250 TB
    Maximum number of shared folder

    512
    JBOD Expansion


    VJBOD / VJBOD Cloud


    iSCSI Service


    Fibre Channel Service


    LUN Type

    Thick, Thin
    File-based iSCSI LUN


    Block-based iSCSI LUN


    Maximum LUN size

    250 TB

    Note: At least 4 GB RAM is required.
    Maximum number of targets LUN

    256
    LUN feature
    1. LUN Mapping (LUN can be moved between iSCSI and FC)
    2. LUN Masking
    3. WWPN Aliases Import/Export
    4. FC Port Group
    5. FC Port Binding
    6. Multipath IO (MPIO)
    7. Online LUN capacity expansion
    8. LUN snapshot
    9. LUN snapshot replication and clone
    Show more...
    Auto Tiering



    Requires minimum 2GB memory.
    RAID Type
    1. 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
    2. 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
    3. 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
    4. 2-bay: JBOD, Single, RAID 0, 1
    RAID Group



    To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.
    RAID Level Migration


    RAID Expansion (by adding Disk)


    RAID Expansion (by replacing bigger Disks)


    Storage Pool Expansion (by adding RAID Group)


    RAID Hot Spare

    Global, Local
    RAID Sync/Rebuild/Scrubbing


    Internal drive

    EXT4
    External drive

    EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)

    Note: To use exFat in certain models you must purchase an exFAT driver license from License Center.
    Disk, Enclosure Locate


    Disk S.M.A.R.T. Scan


    Disk S.M.A.R.T. Data Migration


    Ironwolf Health Management


    Secure Erase


    SSD Trim


    SSD Life Estimation


    Disk Roaming


    Disk Standby


    Volume Snapshot


    LUN Snapshot


    Maximum Snapshot (Per System)

    Check maximum number of snapshots of your NAS
    Maximum Snapshot (Per Volume / LUN)

    Check maximum number of snapshots of your NAS
    Minimum Snapshot Interval

    5 minutes
    Snapshot Retention Policy


    Self-serve Snapshot Recovery


    Application Consisted Snapshot


    Snapshot Full Clone


    Snapshot Replica / Vault


    SSD read-only Cache


    SSD read-write cache


    SSD write-only cache


    SSD Cache Maximum Size

    Check your QNAP NAS cache capacity and RAM requirements
    SSD Cache RAID

    0, 1, 5, 6, 10
    SSD profiling tool


    External Device Management


    Mount Smart Phone (MTP)


    External RAID Device (QNAP so on) Management (External Device Mode)


    External RAID Device (QNAP so on) Management (NAS Mode)


    File Server
    1. File sharing across Windows, Mac, and Linux/UNIX
    2. Microsoft networking (CIFS/SMB)
    3. Apple networking (AFP)
    4. NFS version 3/4 services
    FTP Server
    1. QuFTP
    2. FTP, SFTP and TFTP protocols
    3. FTP over SSL/TLS (explicit FTPS)
    4. FXP support
    Maximum FTP connection

    1024
    File Station (Web)


    Object Storage


    Local user account

    4,096
    Local group account

    512
    Domain user/group account

    200,000
    Domain Security


    Domain Controller


    Shared folder permission


    Advanced folder permission

    , (AFP, CIFS/SMB, FTP, and File Station)
    Windows ACL

    , (CIFS/SMB)
    User quota


    Group quota


    Folder quota

    , (Snapshot shared folder)
    Home folder


    Resource Monitor


    SNMP

    V2, V3
    Network recycle bin
    1. Recover files deleted using AFP, CIFS/SMB, and File Station
    2. Automatic cleanup and file type filter
    System Log & Notification Center

    Log recording: 3,000 event per second
    Smart Fan


    Schedule on/off


    Internet protocol

    IPv4, IPv6
    Virtual Switch


    Port trunking

    , (7 modes)
    VLAN


    DHCP Server


    DDNS (Dynamic Domain Name Service)


    Network access protection with auto-blocking

    SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP
    Security Counselor


    Malware Remover


    AES 256-bit Volume Encryption validated by FIPS 140-2 CAVP


    2-step verification


    Allow/Deny List


    Access Protection


    Service binding


    Firewall


    vSphere Web Client Plug-in


    VMware vSphere VAAI for iSCSI


    VMware vSphere VAAI for NAS


    Windows ODX


    Windows/VMware Snapshot Agent


    HTTP/HTTPS Connections

    TLS 1.0/1.1/1.2/1.3
    Supports WebDAV Connection


    Supports Virtual Hosts

    32
    Qsync



    Note: At least 1 GB RAM is required.
    [Qsync] Management Mode

    User customization, Central
    [Qsync] Qsync client supported platforms

    Windows, macOS, Ubuntu, Android, and iOS
    [Qsync] Maximum number of version control

    64
    HybridMount



    Note: At least 1 GB RAM is required.
    [HybridMount] File Cloud Gateway

    Concurrent Connections = 20 Upload & 20 Download
    [HybridMount] Network Drive Mount


    [HybridMount] Free cloud gateway sessions

    2
    HBS (Hybrid Backup Sync)



    Note: At least 1 GB RAM is required.
    [HBS (Hybrid Backup Sync)] NAS to NAS backup


    [HBS (Hybrid Backup Sync)] Cloud Backup


    [HBS (Hybrid Backup Sync)] Cloud Sync


    [HBS (Hybrid Backup Sync)] 2-way and Active Sync


    [HBS (Hybrid Backup Sync)] Backup Deduplication


    [HBS (Hybrid Backup Sync)] Apple Time Machine Backup


    [HBS (Hybrid Backup Sync)] External drive backup


    [HBS (Hybrid Backup Sync)] Maximum number of backup job

    400
    Hyper Data Protector


    Boxafe



    Note: At least 4 GB RAM is required.
    [Boxafe] Office 365 Backup


    [Boxafe] Google Workspace Backup


    [Boxafe] Full-text search


    Qsirch



    Note: This feature is supported by all QNAP NAS devices with at least 2 GB of memory
    [Qsirch] Previews

    Photos, music, videos, PDFs, Gmail, and others
    [Qsirch] Integrate Mac Finder


    [Qsirch] Advanced picture search


    [Qsirch] Search filters


    QuMagie



    Note: At least 1 GB RAM is required.
    [QuMagie] Browse photos


    [QuMagie] Virtual and smart albums


    [QuMagie] AI-assisted photo management

    People, things, places, and others
    Antivirus (free)


    McAfee (License)


    QVPN Service



    Note: At least 1 GB RAM is required.
    [QVPN Service] Remote Access

    PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt (QNAP proprietary)
    [QVPN Service] Supportedd utility and mobile app

    Windows, macOS, iOS, and Android
    [QVPN Service] Supported maximum clients

    100
    HD Station


    LDAP Server


    RADIUS


    SQL server


    License Center


    Multimedia Console


    Photo Station


    Music Station


    Video Station


    Download Station


    Notes Station


    Qfiling


    Media Streaming add-on


    QmailAgent


    QuWAN


    DA Driver Analyzer


    Q'center



    Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V).
    Q'center Server


    Q'center Agent


    Connect to Q'center


    Virtualization Station



    Note: At least 4 GB RAM is required.
    [Virtualization Station] Supports Virtual machine instances

    Windows, Linux, Unix, and Android
    [Virtualization Station] VM importing, exporting, cloning, snapshot capturing, backup, and restoration

    All function is Fine.
    [Virtualization Station] Virtual switches

    Can create a virtual switch
    [Virtualization Station] GPU pass-through

    Not support GPU
    [Virtualization Station] Suggested number of virtual machine instances

    4

    The actual number of virtual machine instances may vary by the memory installed on NAS (e.g. 1 VM= 1 thread for 1 vCPU and 1GB memory). Please expend memory if needed.
    Container Station



    Note: At least 1 GB RAM is required.
    [Container Station] Supported type

    LXC/LXD and Docker

    Note: LXD has been supported after Container Station 2.4
    [Container Station] Docker Hub Registry


    [Container Station] Container importing and exporting


    [Container Station] Console mode


    Linux Station



    Notification: At least 4 GB RAM is required.
    [Linux Station] Supports Ubuntu versions

    18.04, and 20.04
SKU TS-264-8G
Barcode # 4063448007990
Brand QNAP
Shipping Weight 2.6000kg
Shipping Width 0.040m
Shipping Height 0.040m
Shipping Length 0.040m

Maunfacturer Warranty: 3 Years Maunfacturer Warranty
