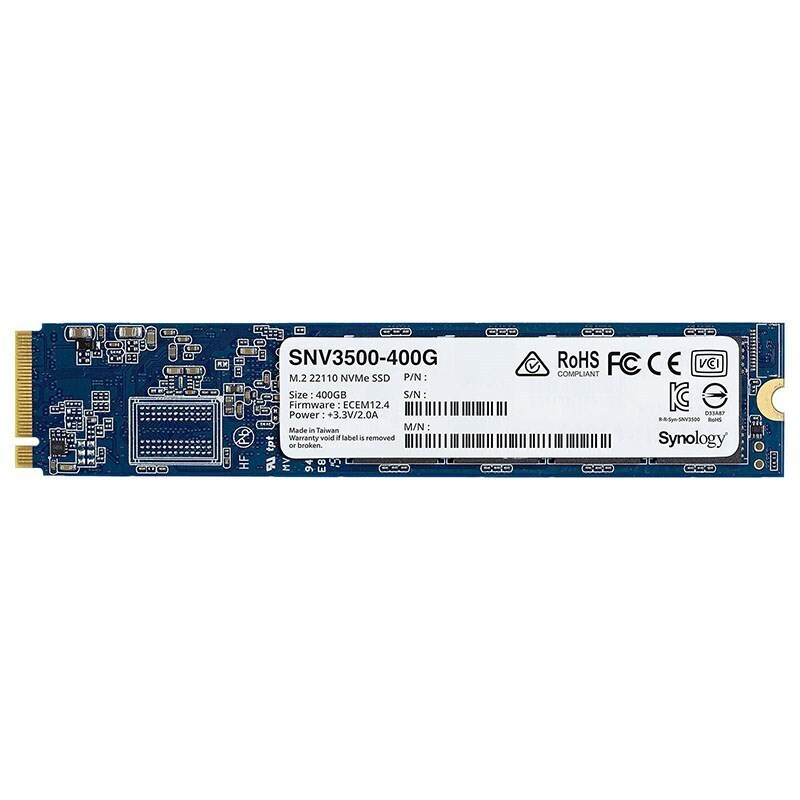

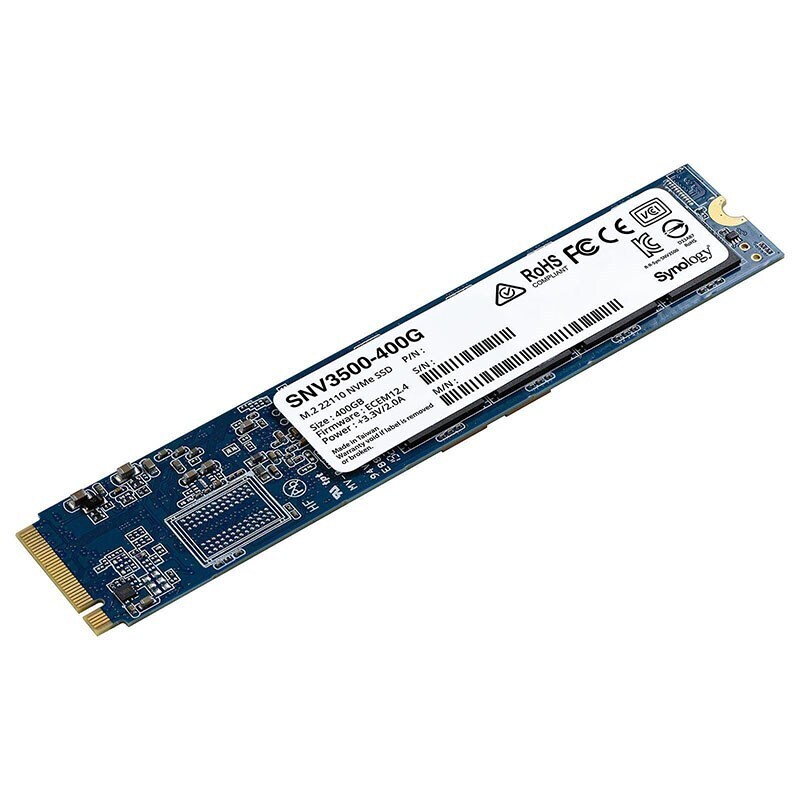

Synology SNV3500 400GB NVMe M.2 22110 Enterprise SSD

Model # SNV3500-400G

SYNOLOGYSKU: SNV3500-400G


$339.86

RRP $347.00
SAVE $7.14
Sold Out

SNV3500-400G

Synology SNV3500 400GB NVMe M.2 22110 Enterprise SSD - Form Factor: M.2 22110 - Interface: NVMe PCIe 3.0 x4 - Sequential Read Speeds: Up to 3,100MB/s, Sequential Write Speeds: Up to 550MB/s - Random Read Speed: Up to 205,000 IOPS, Random Read Speed: Up to 40,000 IOPS - TBW: 500TB - MTBF: 1,800,000 Hours - Power Loss Protection - SNV3500-400G

Hardware Specifications

SNV3400-400G

SNV3500-400G

SNV3400-800G

SNV3500-800G

GeneralCapacity400 GB400 GB800 GB800 GBForm FactorM.2 2280M.2 22110M.2 2280M.2 22110InterfaceNVMe PCIe 3.0 x4NVMe PCIe 3.0 x4NVMe PCIe 3.0 x4NVMe PCIe 3.0 x4PerformanceSequential Read (128KB, QD32)3,100 MB/s3,100 MB/s3,100 MB/s3,100 MB/sSequential Write (128KB, QD32)550 MB/s550 MB/s1,000 MB/s1,000 MB/sRandom Read (4KB, QD256)205,000 IOPS205,000 IOPS375,000 IOPS375,000 IOPSRandom Write (4KB, QD256)40,000 IOPS40,000 IOPS70,000 IOPS70,000 IOPSEndurance and ReliabilityTerabytes Written (TBW)*500 TB500 TB988 TB988 TBDrive Writes Per Day (DWPD)0.680.680.680.68Mean Time Between Failures (MTBF)1.8 million hours1.8 million hours1.8 million hours1.8 million hoursUncorrectable Bit Error Rate (UBER)< 1 sector per 1017 bits read< 1 sector per 1017 bits read< 1 sector per 1017 bits read< 1 sector per 1017 bits readPower Loss Protection--Warranty*5 Years5 Years5 Years5 YearsNotes

  • Based on the JESD219A enterprise workload.
  • 5-year limited warranty provides coverage until the end of the warranty period or until the endurance usage of the drive has been reached, whichever comes first. (Learn more)

Power ConsumptionSupply Voltage3.3V (± 5%)3.3V (± 5%)3.3V (± 5%)3.3V (± 5%)Active Read (Typ.)3.2 W3.7 W4.5 W5.1 WActive Write (Typ.)3.2 W3.4 W4.5 W5.0 WIdle2.0 W2.0 W2.0 W2.0 WNotesPower consumption may differ according to configurations and platforms.TemperatureOperating Temperature0°C to 70°C (32°F to 158°F)0°C to 70°C (32°F to 158°F)0°C to 70°C (32°F to 158°F)0°C to 70°C (32°F to 158°F)Storage Temperature-40°C to 85°C (-40°F to 185°F)-40°C to 85°C (-40°F to 185°F)-40°C to 85°C (-40°F to 185°F)-40°C to 85°C (-40°F to 185°F)OthersSize (Height x Width x Depth)3.5 mm x 22 mm x 80 mm4.5 mm x 22 mm x 110 mm3.5 mm x 22 mm x 80 mm4.5 mm x 22 mm x 110 mmCertification

  • FCC
  • CE
  • EAC
  • BSMI
  • VCCI
  • RCM
  • KC
  • RoHS
  • FCC
  • CE
  • EAC
  • BSMI
  • VCCI
  • RCM
  • KC
  • RoHS
  • FCC
  • CE
  • EAC
  • BSMI
  • VCCI
  • RCM
  • KC
  • RoHS
  • FCC
  • CE
  • EAC
  • BSMI
  • VCCI
  • RCM
  • KC
  • RoHS

Compatibility

Applied Models

SKU SNV3500-400G
Barcode # 846504003969
Brand SYNOLOGY
Shipping Weight 0.3000kg
Manufacturer Warranty
