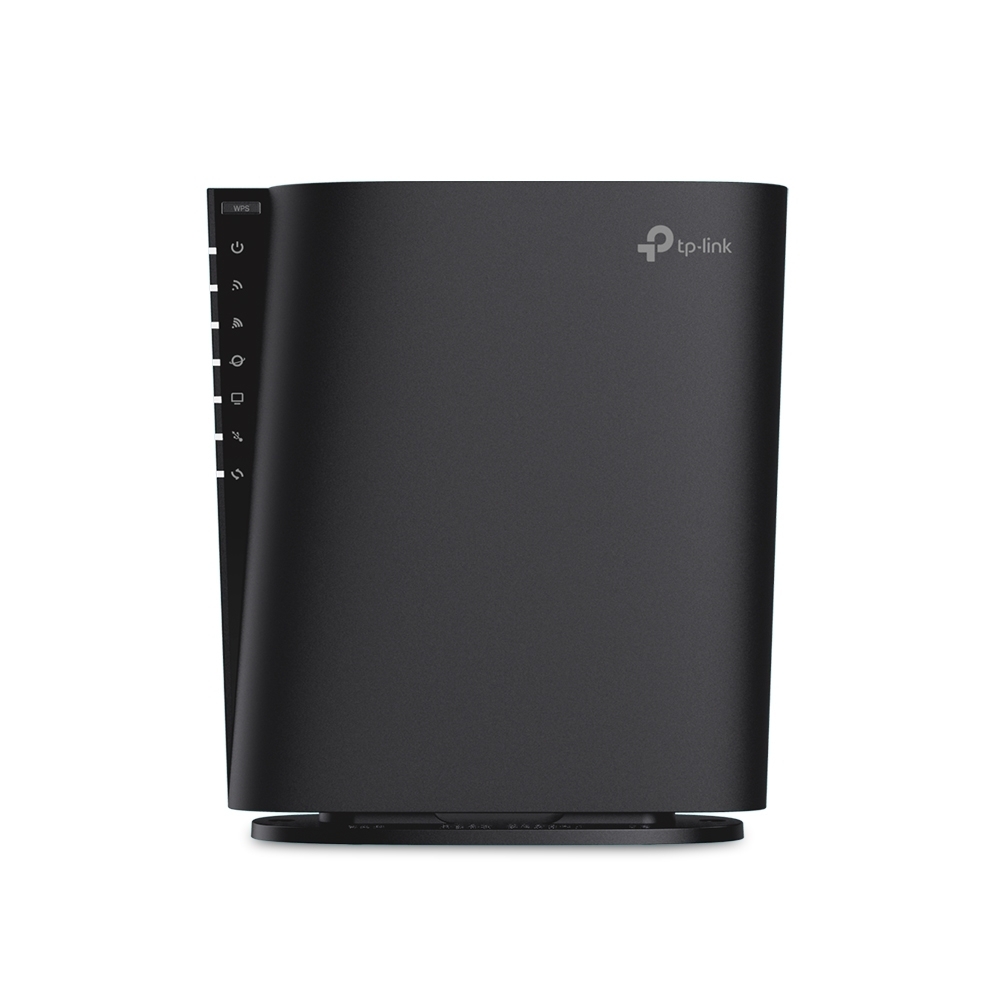

TP-Link Archer AX80 AX6000 8-Stream Wi-Fi 6 Router with 2.5G Port
Model # ARCHER AX80
TP-LINKSKU: ARCHER-AX80
$260.10
RRP $449.00
SAVE $188.90
In Stock
- Lightning-Fast AX6000 WiFi: Up to 6.0 Gbps (4804 Mbps + 1148 Mbps) WiFi for faster browsing, streaming, and downloading, all at the same time.
- 2.5G Multi-Gigabit Port: 1 2.5 Gbps WAN/LAN port + 1 Gbps WAN/LAN port + 3 Gigabit LAN ports + 1 USB 3.0 port ensure max flexibility and boosted throughput.
- Maximized Coverage: Four dual-band high-gain antennas equipped with Beamforming ensure vast coverage.
- More Devices with Less Lag: OFDMA and MU-MIMO technology deliver data to multiple devices simultaneously.
- Powerful CPU: Top-notch quad-core processor ensures fast transmission speeds and smooth operation of numerous devices and applications.
- VPN Client Supported: Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device.
- TP-Link HomeShield: Enhanced security defends against the latest cyber threats.
- TP-Link OneMesh Supported: Flexibly Create Whole Home WiFi with Archer AX80 by adding a OneMesh-supported Range Extender.
- Compatible with Alexa: Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 6 ⢠IEEE 802.11ax/ac/n/a 5 GHz ⢠IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX6000 ⢠5 GHz: 4804Mbps (802.11ax, HE160) ⢠2.4 GHz: 1148 Mbps (802.11ax) |
| WiFi Range | 3+ Bedroom Houses
⢠4à Dual-Band High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas ⢠Beamforming Concentrates wireless signal strength towards clients to expand WiFi range ⢠High-Power FEM Improves transmission power to strengthen signal coverage |
| WiFi Capacity | High
⢠Dual-Band Allocate devices to different bands for optimal performance ⢠OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients ⢠Airtime Fairness Improves network efficiency by limiting excessive occupation ⢠DFS Access an extra band to reduce congestion ⢠8 Streams Connect your devices to more bandwidth |
| Working Modes | ⢠Router Mode ⢠Access Point Mode |
| HARDWARE | |
|---|---|
| Ethernet Ports | ⢠1à 2.5 Gigabit WAN/LAN Port ⢠1à Gigabit WAN/LAN Port ⢠3à Gigabit LAN Ports |
| USB Support | 1à USB 3.0 Port USB Sharing: ⢠FTP Server ⢠Media Server ⢠Samba Server |
| Buttons | ⢠LED On/Off and Wi-Fi On/Off Combo Button ⢠WPS Button ⢠Power On/Off Button ⢠Reset Button |
| Power | ⢠12 V/2 A |
| SECURITY | |
|---|---|
| WiFi Encryption | ⢠WPA3*6 ⢠WPA2 ⢠WPA ⢠WPA/WPA2-Enterprise (802.1x) |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | ⢠1à 5 GHz Guest Network ⢠1à 2.4 GHz Guest Network |
| VPN Server | ⢠OpenVPN ⢠PPTP ⢠L2TP |
| VPN Client | ⢠OpenVPN ⢠PPTP ⢠L2TP |
| SOFTWARE | |
|---|---|
| Protocols | ⢠IPv4 ⢠IPv6 |
| Service Kits | HomeShield Learn More> |
| OneMesh⢠| OneMesh⢠Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh⢠helps you create a more flexible network that covers your entire home with TP-Link OneMesh⢠products. Learn More> All OneMesh Products> |
| Parental Controls | HomeShield Parental Controls
⢠Custom Profiles ⢠Professional Content Filter Library ⢠Family Time ⢠Bedtime ⢠Off Time ⢠Time Rewards ⢠Family Online Time Ranking ⢠Pause the Internet ⢠Weekly and Monthly Reports |
| WAN Types | ⢠Dynamic IP ⢠Static IP ⢠PPPoE ⢠PPTP ⢠L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | ⢠Auto Firmware Upgrade ⢠OTA Firmware Upgrade ⢠TP-Link ID ⢠DDNS |
| NAT Forwarding | ⢠Port Forwarding ⢠Port Triggering ⢠DMZ ⢠UPnP |
| IPTV | ⢠IGMP Proxy ⢠IGMP Snooping ⢠Bridge ⢠Tag VLAN |
| DHCP | ⢠Address Reservation ⢠DHCP Client List ⢠Server |
| DDNS | ⢠TP-Link ⢠NO-IP ⢠DynDNS |
| Management | ⢠Tether App ⢠Webpage Check Web Emulator> |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | CE, RoHS, JPA JRF VCCI |
| Environment | Operating Temperature: 0â~40â (32â ~104â) Operating Humidity: 10%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE: <23dBm (5.15GHz~5.35GHz) <30dBm (5.47GHz~5.71GHz) <20dBm (2.4GHz) |
| WiFi Reception Sensitivity | ⢠2.4 GHz: 11ac VHT20 MCS0: -96dBm, 11ac VHT20 MCS8: -73dBm, 11ac VHT40 MCS0: -94dBm, 11ac VHT40 MCS9: -68dBm, 11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -66dBm, 11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -63dBm ⢠5 GHz: 11ac VHT20 MCS0: -94dBm, 11ac VHT20 MCS8: -70dBm, 11ac VHT40 MCS0: -91dBm, 11ac VHT40 MCS9: -67dBm, 11ac VHT80 MCS0: -88dBm, 11ac VHT80 MCS9: -63dBm, 11ax HE20 MCS0: -94dBm, 11ax HE20 MCS11: -64dBm, 11ax HE40 MCS0: -91dBm, 11ax HE40 MCS11: -61dBm, 11ax HE80 MCS0: -88dBm, 11ax HE80 MCS11: -58dBm, 11ax HE160 MCS0: -84dBm, 11ax HE160 MCS11: -55dBm |
| PHYSICAL | |
|---|---|
| Dimensions (WÃDÃH) | 7.9 Ã 7.4 Ã 2.3 in (200 Ã 189 Ã 59 mm) |
| Package Contents | ⢠Wi-Fi Router Archer AX80 ⢠Power Adapter ⢠RJ45 Ethernet Cable ⢠Quick Installation Guide |
| SKU | ARCHER-AX80 |
| Brand | TP-LINK |
| Shipping Weight | 1.0000kg |
