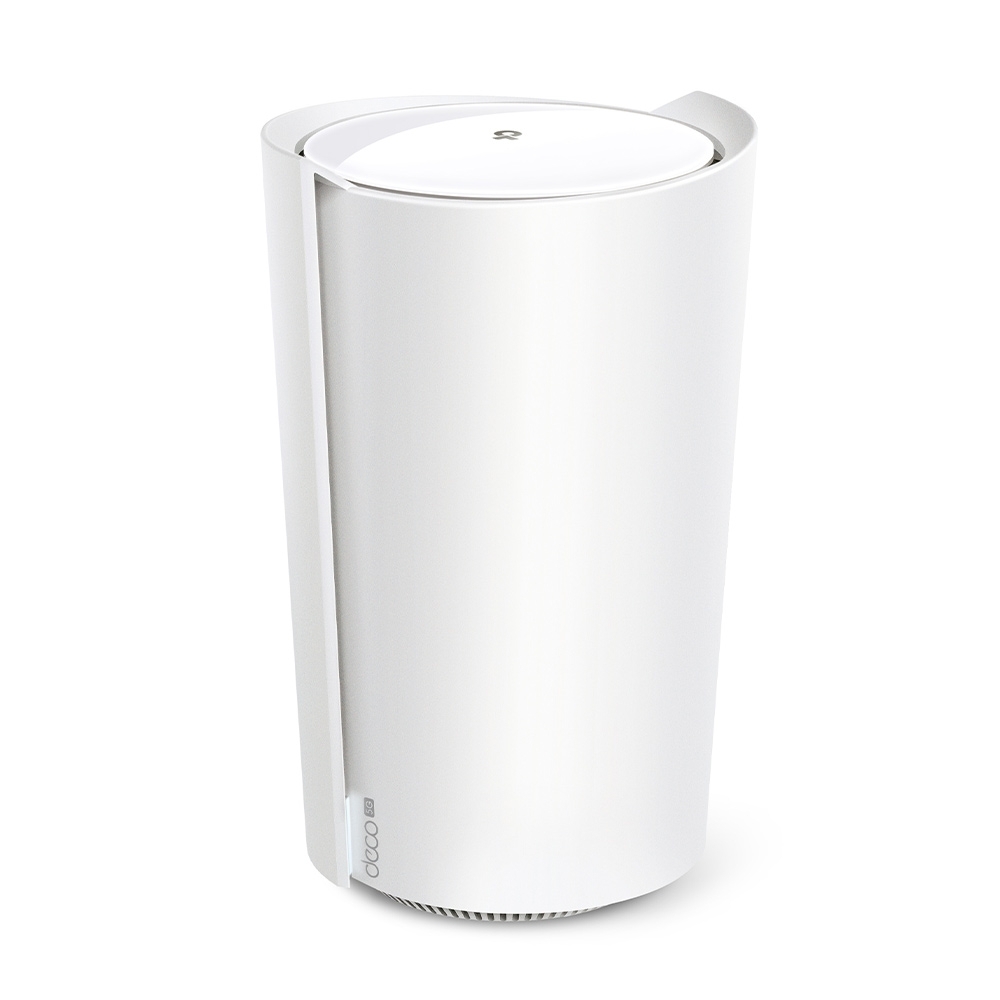

TP-Link Deco X80-5G(1-pack) 5G Whole Home Wi-Fi 6 Gateway
Model # Deco X80-5G(1-pack)
TP-LINKSKU: DECO-X80-5G-1-PACK
Ultra-Fast Broadband Connection: Supports Sub-6 GHz 5G technology and boosts download speeds up to 5.0 Gbps Ultra-Low Latency: 5G brings responsive network connections with only 1 ms latency§ AX6000 Dual-Band Wi-Fi 6 Speed: 4804 Mbps (5 GHz) + 1148 Mbps (2.4 GHz) 2.5 Gigabit Wired Connections: 1× 2.5 Gbps port + 1× Gigabit port** Mesh Network: Deco mesh technology ensures strong Wi-Fi signals everywhere Flexible Network Access: 4G, 5G, Fixed-Line Internet Access Plug & Play: Enjoy Deco 5G right after inserting a SIM card VoLTE Support: Home phone over VoLTE Simplified Setup: Easily set up and manage your network with the TP-Link Deco app TP-Link HomeShield: Provides comprehensive network protection, robust parental controls, and real-time loT security*
| SECURITY | |
|---|---|
| Network Security | SPI Firewall Access Control HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | 1Ã 5 GHz Guest Network 1Ã 2.4 GHz Guest Network |
| WiFi Encryption | WPA-Personal WPA2-Personal WPA3-Personal |
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX6000 5 GHz: 4804 Mbps (802.11ax) 2.4 GHz: 1148 Mbps (802.11ax) |
| WiFi Range | 1-3 Bedroom Houses (1-pack)
TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 8Ã LTE/5G internal antennas + 8Ã Wi-Fi internal antennas + 2Ã external antenna interface Multiple antennas form a signal-boosting array to cover more directions and large areas |
| WiFi Capacity | High
Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 6 clients 12 Streams More than enough bandwidth for connected devices |
| Working Modes | 5G/4G Router, Router, Access Point |
| HARDWARE | |
|---|---|
| Ethernet Ports | 1Ã2.5 Gigabit port + 1Ã1 Gigabit port (WAN/LAN auto-sensing) |
| Ports and Connections | 2Ã 5G External Antenna Ports 1Ã Phone Port Compatibility 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79 4G FDD-LTE: B1/B3/B5/B7/B8/B18/B19/B20/B26/B28 4G TDD-LTE: B34/B38/B39/B40/B41/B42/B43 |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Service Kit | HomeShield Learn More> |
| WAN Types | Dynamic IP Static IP PPPoE L2TP PPTP |
| Quality of Service | HomeShield QoS
QoS by Device |
| Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link |
| Management | Deco App |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE: â¤20 dBm (2.4 GHz), â¤23 dBm (5 GHz) |
| PHYSICAL | |
|---|---|
| Dimensions (WÃDÃH) | 8.3 Ã 5.1 Ã 4.8 in (210.5 Ã 130 Ã 123mm) |
| OTHERS | |
|---|---|
| Certification | RoHS, CE, RCM |
| Package Contents | 1-pack 1 Deco X80-5G unit 1 RJ45 Ethernet Cable 1 RJ11 Telephony Cable 1 Power Adapter Quick Installation Guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~60°C (-40°F~140°F) Operating Humidity: 10%~90%RH Storage Humidity: 5%~90%RH |
| SKU | DECO-X80-5G-1-PACK |
| Barcode # | 4897100000000 |
| Brand | TP-LINK |
| Shipping Weight | 2.0000kg |
