TP-Link Mercusys MR90X AX6000 8-Stream Wi-Fi 6 Router - MR90X

Model # MR90X

TP-LINKSKU: MR90X


$163.20

RRP $299.00
SAVE $135.80
In Stock

MR90X

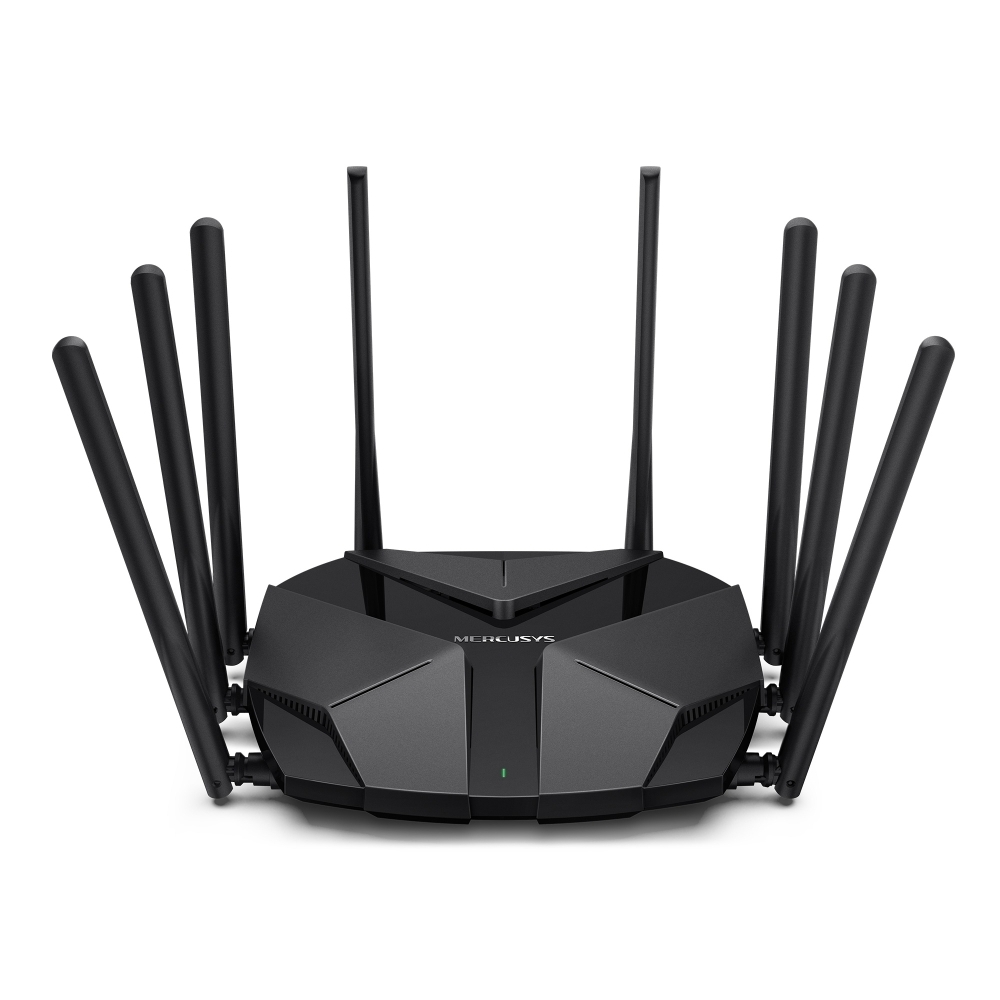

Mercusys MR90X AX6000 8-Stream Wi-Fi 6 Router

  • OPTIMAL WIFI 6 SPEEDS – Optimal WiFi 6 speeds reaching up to 6 Gbps for faster browsing, streaming, and downloading, all at the same time.
  • 2.5 Gbps MULTI-GIG PORT – Break through the 1G bottleneck and drive your devices to peak performance.
  • MORE DEVICES, MORE FUN – Supports 4×4 MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
  • WiFi THAT GOES FARTHER – 8× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
  • OVERALL SECURITY PROTECTION – The latest WPA3 provides improved WiFi security
  • GIGABIT WIRED CONNECTIONS – Make full use of your internet access and transfer data at dizzying speeds for peak performance
  • ECO-FRIENDLY POWER SAVING – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
  • LESS WIFI INTERFERENCE – Minimizes the interference from neighbouring signals to improve transmission efficiency with BSS coloring
  • SMART CONNECT – Intelligently chooses the best available band for each device
Wireless Standards

Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards

Signal Rate

4804 Mbps (5 GHz) + 1148 Mbps (2.4 GHz)

Reception Sensitivity

11g 6Mbps: -97dBm
11g 54Mbps: -79dBm
11n HT40 MCS7:-74dBm
11n HT20 MCS7:-77dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8:-75dBm
11ac VHT40 MCS9:-71dBm
11ac VHT80 MCS9:-67dBm
11ax VHT20 MCS11:-67dBm
11ax VHT40 MCS11:-64dBm
11ax VHT80 MCS11:-61dBm

Transmission Power

2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (band1、 band2)
5 GHz < 30dBm (band3)

Wireless Security

WPA / WPA2-Personal, WPA2 / WPA3-Personal

Wireless Functions

Enable/Disable Wireless Radio, WMM

Wireless
WAN Type



Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Access Control
Local Management
Remote Management

DHCP

Server, DHCP Client List

NAT Forwarding

Port Forwarding, Port Triggering, UPnP, DMZ

Firewall Security

SPI Firewall, IP and MAC Address Binding

Guest Network

2.4 GHz Guest Network, 5 GHz Guest Network

VPN Sever

OpenVPN, PPTP supported

Software
Dimensions (W X D X H)

8.2 × 6.8 × 1.6 in
(209 Ã— 172.2 Ã— 42.4 mm)

Interfaces

1× 2.5 Gbps WAN/LAN Port + 1× Gigabit WAN/LAN Port + 2× Gigabit LAN Ports

Button

Reset/WPS Button

Antenna Type

8× Fixed Omni-Directional Antennas

Hardware
Package Contents

• AX6000 8-Stream Wi-Fi 6 Router MR90X
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable

Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing

SKU MR90X
Barcode # 849439000874
Brand TP-LINK
Shipping Weight 1.1000kg

Manufacturer Warranty
