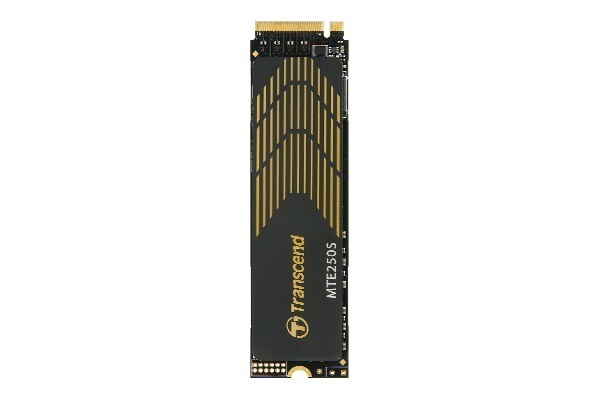

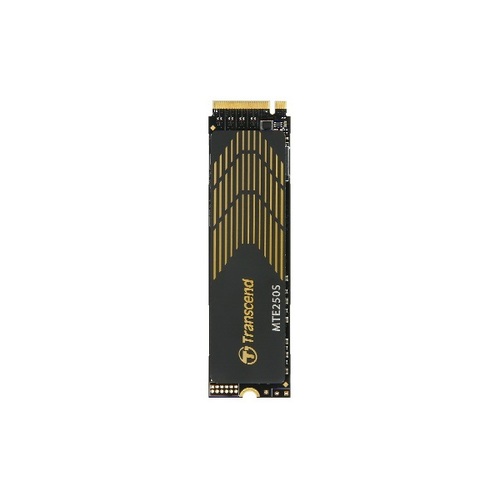

Transcend TS1TMTE250S 1TB M.2 2280 PCIe Gen4x4 NVMe 3D TLC with DramGraphene Heatsink

Model # TS1TMTE250S

TRANSCENDSKU: TS1TMTE250S


$193.80

RRP $198.00
SAVE $4.20
Sold Out

TS1TMTE250S

1TB M.2 2280 PCIe Gen4x4 NVMe 3D TLC with DramGraphene Heatsink

Exhibiting more than just ultra speeds, the PCIe SSD 250S delivers unbridled performance, low latency, and high stability for advanced video editors, gamers, and software engineers. Built with the PCI Express® Gen 4 x4 interface, 3D NAND flash, 8-channel controller, and a DRAM cache, the PCIe SSD 250S is ready to put excellence in your hands.

Appearance

Dimensions Double-sided 80 mm x 22 mm x 3.77 mm (3.15" x 0.87" x 0.15")
Weight 10 g (0.35 oz)
Type
  • M.2 2280

Interface

Bus Interface
  • NVMe PCIe Gen4 x4

Storage

Flash Type
  • 3D NAND flash
Capacity
  • 1 TB/
  • 2 TB

Operating Environment

Operating Temperature 0°C (32°F) ~ 70°C (158°F)
Operating Voltage
  • 3.3V±5%

Performance

Sequential Read/Write (CrystalDiskMark)
  • 2 TB
    up to 7,100/6,500 MB/s
  • 1 TB
    up to 7,200/6,200 MB/s
4K Random Read/Write (IOmeter)
  • 2 TB
    up to 530,000/420,000 IOPS
  • 1 TB
    up to 530,000/420,000 IOPS
Terabytes Written (TBW)
  • 2 TB
    1560 TBW
  • 1 TB
    780 TBW
Mean Time Between Failures (MTBF) 3,000,000 hour(s)
Drive Writes Per Day (DWPD) 0.43 (5 yrs)
Note
  • Speed may vary due to host hardware, software, usage, and storage capacity.
  • The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
  • Terabytes Written (TBW) expresses the endurance under the highest capacity.
  • Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives.

Warranty

Certificate
  • CE/
  • FCC/
  • BSMI/
  • KC/
  • RCM/
  • UKCA
Warranty
  • Five-year Limited Warranty
SKU TS1TMTE250S
Barcode # 760557860075
Brand TRANSCEND
Shipping Weight 0.3500kg

Manufacturer Warranty
