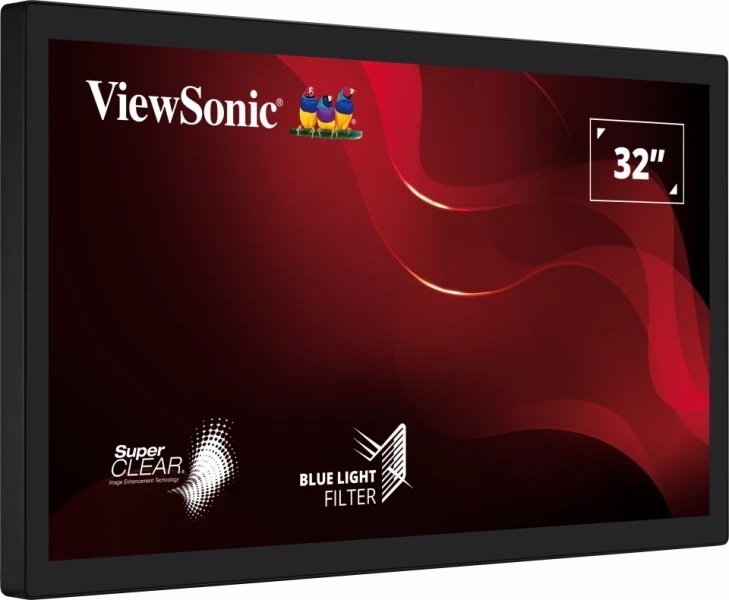

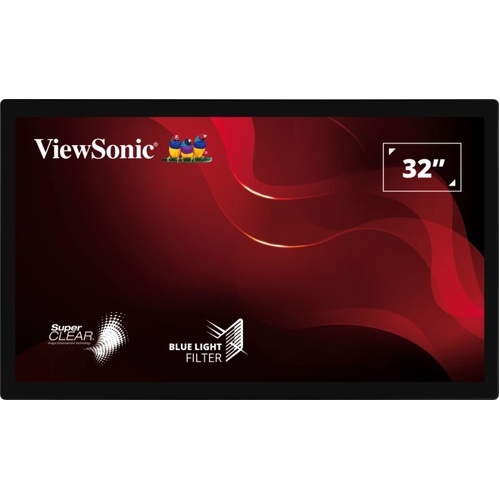

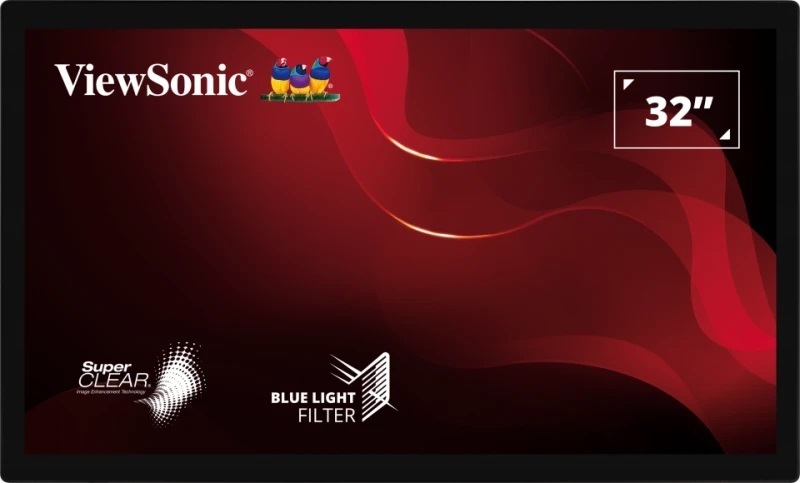

ViewSonic TD3207 32” Open Frame Touch Monitor with 24/7 Operation
Model # TD3207
VIEWSONICSKU: TD3207
Sold Out
ViewSonic TD3207 32 Open Frame Touch Monitor with 24/7 Operation
- VERSATILE TOUCH MONITOR: 32 Inch Full HD (1920x1080p) IPS touch monitor with thin bezels and 60Hz refresh rate
- ADVANCED TOUCH SCREEN: Robust 10-point Projected Capacitive (PCAP) technology provides a smooth and responsive experience with every tap, pinch, and swipe
- EXTENDED 24/7 FUNCTIONALITY: Rated for 24/7 continous operation, this device features an advanced cooling system and burn-in prevention for graphics-rich content around the clock.
- ADVANCED DURABILITY: An IP54 rated screen with 3mm-thick glass and 7H hardness offers a scratch and water-resistant surface that can stand up to hard knocks and water splashes.
- MULTI-TOUCH FOR MAC: MacOS users can access touch and gesture controls on touch displays connected to their Apple devices using ViewSonic's vTouch driver. Not available for iPhone and iPad
- Display
Display Size (in.): 32
Viewable Area (in.): 31.5
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 450 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit true
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Response Time (GTG w/OD): 4.6ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 50000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
Pixel Size: 0.364 mm (H) x 0.364 mm (V)
Touch Screen: Projected Capacitive, 10-point multi-touch
Surface Treatment: Glossy, Hard Coating (7H)
Cover Glass Thickness: 3mm - Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080 - Connector
USB 2.0 Type B: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
DisplayPort: 1
Power in: DC Socket (Center Positive)
RS232 In: 1
- Audio
Internal Speakers: 2Watts x2
- Power
Eco Mode (Conserve): 27W
Eco Mode (optimized): 35W
Consumption (typical): 43W
Consumption (max): 45.5W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor - Controls
Physical Controls: 1, 2, Up, Down, Left, Right, Power
On Screen Display: Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall - Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90% - Wall Mount
VESA Compatible: 400 x 200; 200 x 100 mm
- Input Signal
Frequency Horizontal: 15 ~ 73KHz
Frequency Vertical: 47 ~ 75Hz - Video Input
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
- Ergonomics
Tilt (Forward/Back): N/Aº / N/Aº
- Weight (imperial)
Net (lbs): 28.2
Net Without Stand (lbs): 28.2
Gross (lbs): 34.2 - Weight (metric)
Net (kg): 12.8
Net Without Stand (kg): 12.8
Gross (kg): 15.5 - Dimensions (imperial) (wxhxd)
Packaging (in.): 34 x 22.7 x 6.4
Physical (in.): 29.4 x 17.8 x 2.5
Physical Without Stand (in.): 29.4 x 17.8 x 2.5 - Dimensions (metric) (wxhxd)
Packaging (mm): 863 x 577 x 163
Physical (mm): 747 x 451 x 64
Physical Without Stand (mm): 747 x 451 x 64 - General
Regulations: cTUVus, FCC-B, ICES003, Energy Star, CEC, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO
PACKAGE CONTENTS: TD3207 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards
SKU | TD3207 |
Brand | VIEWSONIC |
Shipping Weight | 12.1000kg |
